DES-1026GEOL EOS

מתג לארון 24 פורטים 10/100Mbps בנוסף 2 פורטים ג'יגהביט
היכן לקנות

תאור

 Main Features

  • 24-Port 10/100Mbps Fast Ethernet
  • 2-Port 10/100/1000Mbps copper Gigabit
  • Auto MDI/MDIX for each port
  • Full/half-duplex support for each port
  • Flow control for protection against data loss for each port
  • Auto-learning of network configuration
  • Secure store-and-forward switching scheme
  • Per-port auto-correction of reverse twisted-pair polarity
  • Standard 19-inch rack-mount size

Product Description

The 26-port D-Link DES-1026G unmanaged switch is designed to meet the needs of the most demanding workgroup and departmental connectivity requirements. A reliable, easy-to-use switch without the complexity of management, the DES-1026G provides (24) 10/100 BASE-TX ports plus (2) 10/100/1000BASE-TX ports. This all-in-one solution economically integrates gigabit technology, helping to remove server bottlenecks and speed up access to the network backbone. The DES-1026G combines ease of use with unsurpassed performance resulting in an exceptional value for any cost-conscious network administrator who wants the best possible solution at the best possible price.

Ease of Use
The DES-1026G is a true Plug-and-Play device with features such as Auto Speed Sensing, allowing it to automatically sense whether a network device is running at 10Mbps or 100Mbps then automatically adjusting itself for optimal performance, Auto Negotiation (Full or Half Duplex) negotiating and running the highest supported transmission rate whether in Half or in Full-Duplex, and Auto MDI/MDIX Crossover offering auto-negotiating MDI/MDIX detection on every port to eliminate the need for crossover cables or uplink ports.

Superior Performance
The DES-1026G features a non-blocking wire-speed architecture with an 8.8Gbps switching capacity for maximum data throughput. With wire-speed filtering and Store-and-Forward switching, the DES-1026G also maximizes network performance while minimizing the propagation of bad network packets.

Quality of Service
The DES-1026G supports 802.1p Quality of Service (QoS). QoS assists in the prompt delivery of time sensitive data such as voice, video, and gaming traffic. When frames enter the switch with 802.1p priority tags, they are automatically placed in one of four built-in hardware queues. Frames with higher priority tags are then passed through the switch more efficiently, helping eliminate jitter and lag in VoIP and multimedia traffic.

Exceptional Value
In addition to being backed by a 5-year warranty, this easy-to-use 10/100BASE-TX switch will enhance and compliment any existing network infrastructure and deliver the performance that IT managers and other SMB network administrators demand

מאפיינים כללים

Interface
• Fast Ethernet:
100 Mbit / s (half duplex)
200 Mbit / s (duplex)
• Gigabit Ethernet:
2000 Mbit / s (duplex)

Protocol
• CSMA / CD

Data transfer rate
• Ethernet:
10 Mbit / s (duplex)
20 Mbit / s (half duplex)
• Fast Ethernet:
100 Mbit / s (half duplex)
200 Mbit / s (duplex)
• Gigabit Ethernet:
2000 Mbit / s (duplex)

Topology
• Star

Network Cable
• 10BASE-T:
UTP Cat. 3, 4, 5 (100 m max.)
EIA/TIA-568 100-ohm STP (100 meters max.)
• 100BASE-TX, 1000BASE-T:
UTP Cat. 5, Cat. 5e (100 m max.)
EIA/TIA-568 100-ohm STP (100 meters max.)

Number of Ports
• 24-port 10/100 Mbit / s
• 2 10/100/1000 Mbit / s

Advanced Interface
• Autodetect cable polarity MDI / MDI-X on each port

Indicators On the device
• Power (Power)
• Status (Status)
At the port:
• Link / Activity (State / Active)
• Speed ​​of 100 Mbit / s (ports 10/100 Mbit / s)
• Speed ​​of 100 Mbit / s and 1000 Mbit / s (ports 10/100/1000 Mbit / s)

Switching Method
• Store-and-forward

The switch fabric
• 8.8 Gb / s

MAC-address table
• 8K entries per device

The study of MAC-address
• Automatic updating of MAC-address table

Speed ​​packet filtering
• 10BASE-T: 14,880 frames / sec per port (half duplex)
• 100BASE-TX: 148,810 frames / sec per port (half duplex)
• Gigabit Ethernet: 1488,100 frames / sec per port

Speed ​​packet switching
• 10BASE-T: 14,880 frames / sec per port (half duplex)
• 100BASE-TX: 148,810 frames / sec per port (half duplex)
• Gigabit Ethernet: 1488,100 frames / sec per port

RAM Buffer
• 320Kbayt on device




נתונים פיזיים

Power
• 100 - 240 VA, 50/60 Hz, 0.3A
• Internal universal power supply

Power consumption
• 15.68 Watt

Fan
• 40 x 40 mm with a DC power supply x 1

Operating Temperature
• 0-40C

Storage temperature
• 10-70C

Humidity
• 5% - 90% non-condensing

Dimensions
• 440 x 200 x 44 mm
• The standard width for 19-inch rack, 1U

Weight
• 2.8 kg

Certificates EMC
• FCC Class A
• CE Class A
• VCCI Class A
• C-Tick

Safety Certifications
• CUL

תקנים

הורדות

איורים

DES-1026G

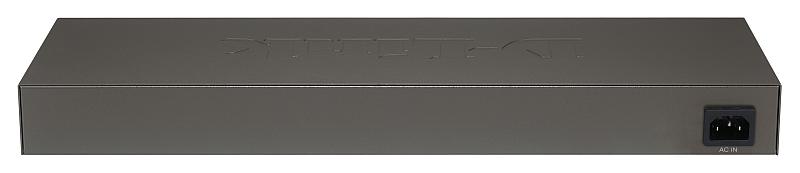

מראה מאחורה

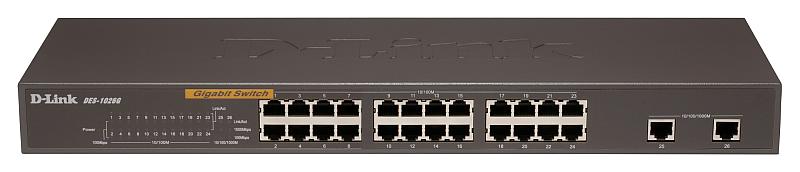

מראה מקדימה
