DGS-1024AEOL

מתג שולחני עם 24 פורטים במהירות ג'יגהביט ותכונת חיסכון בחשמל (מארז פלסטיק)
היכן לקנות

תאור

Unmanaged Gigabit Switch DGS-1024A 24-port is a cost-effective solution for SOHO sector and SMB. The switch provides energy savings and provide a wide bandwidth due to the high density of Gigabit ports.

Gigabit ports
Unmanaged Gigabit switch with 24 ports for high data rate on each port Gigabit Ethernet. If you are connected to the network slower devices operating standards Ethernet or Fast Ethernet, the switch automatically assigns the desired connection speed.

Innovative design
First body Gigabit Switch for networking SOHO / SMB is made of plastic. The compact size of the housing using the passive cooling system allows for quiet operation and makes the device advantageous purchase. Unmanaged Gigabit switch with 24 ports, is small in size and weight, supports the ability to mount on the wall, is the ideal solution for businesses that can meet a wide range of needs without the high cost.

Saving energy
Unmanaged Gigabit switch with 24 ports provides automatic saving of electricity in several ways. If there is no connection to the ports, the power turns off automatically, which can significantly reduce energy consumption at the expense of ports that do not have a physical connection, or ports connected to the device is disconnected. In addition, the switch determines the length of cable connected and selects the appropriate diet, without compromising network performance.

Green Ethernet technology
Unmanaged Gigabit Switch DGS-1024A 24-port support JavaScript D-Link Green Ethernet, providing energy savings and increase the life of the device without affecting the performance and functional characteristics. These switches do not have a negative impact on the environment, comply with the directive RoHS. The use of recyclable packaging reduces waste.

מאפיינים כללים

Number of Ports
• 24-port 10/100/1000 Gigabit Ethernet

Standards
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• Auto-ANSI / IEEE 802.3 NWay
• IEEE 802.3x Flow Control

Data rate
• Ethernet:
   - 10 Mbit / s (half duplex)
   - 20 Mbit / s (full duplex)
• Fast Ethernet:
   - 100 Mbit / s (half duplex)
   - 200 Mbit / s (full duplex)
• Gigabit Ethernet:
   - 2000 Mbit / s (full duplex)

Network Cables
• 10BASE-T:
  - UTP Cat. 3, 4, 5 / 5e (max. 100 m)
  - EIA / TIA-586 100 ohm STP (max. 100 m)
• 100BASE-TX, 1000BASE-T:
  - UTP Cat. 5 / 5e (max. 100 m)
  - EIA / TIA-568 100 ohm STP (max. 100 m)

Functions D-Link Green
• IEEE 802.3az Energy Efficient Ethernet (EEE)
• Reduce energy consumption by determining the connection status and cable length
• RoHS compliant

LAN
• Method «Back pressure» (half-duplex)
• Automatic polarity MDI / MDIX
• Wired Data Transfer
• Transfer Mode Store-and-forward
• MAC-address table: 8K
• Buffer RAM: 3,5 MB
• Jumbo-frames: 9216 bytes
• Switching Matrix: 48 Gbit / s

Speed ​​Packet
• 10M: 14.880 packets per second
• 100M: 148.800 packets per second
• 1000M: 1.488.000 pps

Indicators
• Power
• 24 Link / Activity / Speed ​​(one per port)


נתונים פיזיים

Power
• 12V, 1.5A, external power adapter

Power consumption
• Power ON (Standby): the input power: 6.86 W AC
• Max .: the input power 14.17 watts of AC power

Heat release
• Power ON (Standby): 23,41 BTU / hour
• Max .: 48,35 BTU / hour

MTBF
• 401.515 hours

Dimensions
• 257 x 178 x 46 mm

Weight
• 0.76 kg

Operating Temperature
• From 0 to 40 C

Storage temperature
• From -10 to 70 C

Humidity
• From 5% to 90% (non-condensing)

Certifications
• FCC Class A
• ICES-003 Class A
• CE Class A
• VCCI Class A
• C-Tick Class A
• uCL
• CB

תקנים

הורדות

איורים

DGS-1024A/B

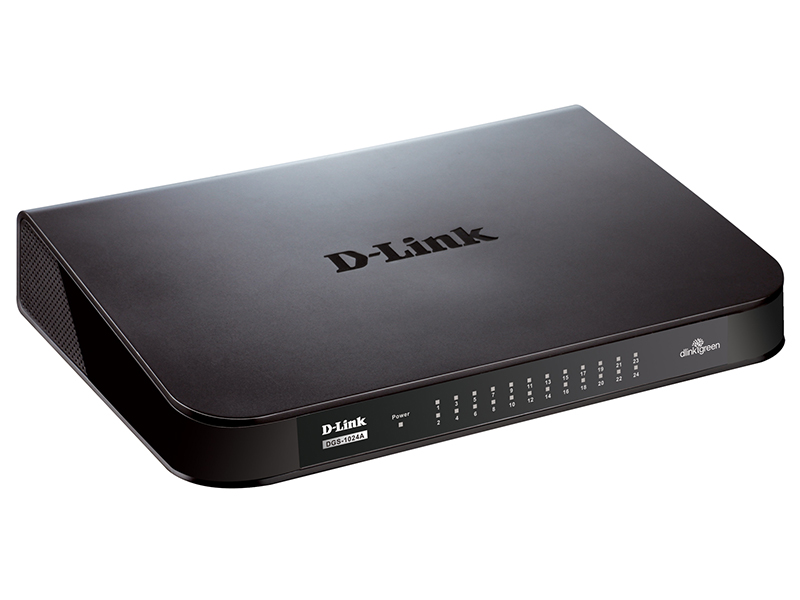

מראה מקדימה
מראה מימין
מראה מאחורה
DGS-1024A/A
מראה מקדימה
מראה מימין
מראה מאחורה
