DGS-1500-52EOL EOS

מתג מנוהל WebSmartPro עם 48 פורטים 10/100/1000 ו 4 יציאות משולבות ג'יגהביט / אופטי (SFP) עם תכונה של חסכון בחשמל
היכן לקנות


D-Link’s DGS-1500 Series SmartPro switches are designed for SMBs which need functions such as Static Routing and Single IP Management (Virtual Stacking). This series integrates advanced management and security functions that are similar to those of a managed switch, but less complex. The switches feature D-Link Green™ 3.0 technology which enable significant power savings.

Additionally, the DGS-1500-28P’s 10/100/1000 Mbps ports are PoE-enabled, offering ease-of-use and green features like Time-based PoE, which enables the power to the port to be shut off at a predetermined time. Compliant with 802.3af and 802.3at, the DGS-1500-28P is capable of providing power to PoE devices of up to 30 Watts on all ports with an inserted RPS-700. The RPS-700 enables the DGS-1500-28P to have 1+1 power redundancy and provide PoE power up to 740 W. By itself, the DGS-1500-28P has a PoE power capability of 370 W, so it can provide up to 15.4 W to all ports simultaneously.

Management options include SNMP, Web Management, SmartConsole Utility, and Compact CLI. The series also supports ACL filtering and D-Link’s Safeguard Engine. The DGS-1500-20 and DGS-1500-28 both feature a fanless design. The fanless design allows them to emit less noise than a standard switch, increasing the products’ lifetimes and making them suitable for office environments.

D-Link Green™ V3.0 Technology
D-Link is striving to take the lead in developing innovative and power-saving technology that does not sacrifice operational performance or functionality.The DGS-1500 Series implements D-Link Green™ 3.0 Technology, which includes a power saving mode, smart fan, reduced heat dissipation, and cable length detection. The power-saving features include being able to schedule when to turn off LEDs and ports when not in use, and when to make the switch enter hibernation mode. The switches can also detect the length of connected cables to automatically adjust power usage by saving energy on shorter cable connections of less than 20 meters. The switches can also support powersaving by link status, which drastically reduces power consumption by automatically toggling ports without a link to sleep mode. The DGS-1500-28P and DGS-1500-52 both feature built-in smart fans that contribute to continuous, reliable, and eco-friendly operation of the switch. Using a thermal sensor that can detect temperature change, the fans can react accordingly by utilizing different fan speeds for different temperatures.

Advanced Features
The DGS-1500 Series features advanced features such as Virtual Stacking and Static Routing. Virtual Stacking reduces the number of IP addresses needed on a network by configuring up to 32 devices to appear as a single unit with one IP address. This simplifies network management for small workgroups and allows for switches to be added without special cabling. In static routing, IP routes are manually entered into a routing table. The DGS-1500 Series switches support static routing, which allows for communication between different user groups in different VLAN segments in a network. The switches can fully handle the inter-VLAN routing making the network run faster and more efficiently. Because the switches can manage internal routing, the network router can be assigned to handle external traffic routing only.

Extensive Layer 2 Features
These switches are equipped with a complete lineup of Layer 2 features including IGMP Snooping, Port Mirroring, Spanning Tree, and Link Layer Discovery Protocol (LLDP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch for fast, reliable data transfer. At 2000 Mbps Full Duplex, the Gigabit ports provide high-speed data pipes to servers with minimum data transfer loss. Network maintenance features include Loopback Detection and Cable Diagnostics. Loopback Detection is used to detect loops created by a specific port or VLAN and automatically shut down the affected port or VLAN. The Cable Diagnostics feature, designed primarily for adminstrators and customer service representatives, can quickly discover the type of error on cables and determine the cable quality.

VLAN and Bandwidth Control
The DGS-1500 Series supports Auto Surveillance VLAN (ASV) and Auto Voice VLAN, which are best suited for VoIP and video surveillance deployments. Auto Surveillance VLAN is a new, industry-leading technology built into D-Link Smart Switches. This technology consolidates data and surveillance video transmission through a single SmartPro switch, thus sparing businesses the expense of maintaining dedicated hardware and facilities. ASV also ensures the quality of real-time video for monitoring and control without compromising the transmission of conventional network data. The Auto Voice VLAN technology enhances VoIP service by automatically placing voice traffic from an IP phone to an assigned VLAN. With higher priority and an individual VLAN, these features guarantee the quality and security of VoIP traffic. Furthermore, the DSCP markings on Ethernet packets enable different levels of service to be assigned to network traffic. As a result, these voice and video packets take precedence over other packets. In addition, with Bandwidth Control, network administrators can reserve bandwidth for important functions that require more bandwidth or might require high priority.

Secure your Network
D-Link’s innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switches also support 802.1X portbased authentication, allowing the network client to be authenticated through external RADIUS servers. In addition, the Access Control List (ACL) feature enhances network security and helps to protect the network by screening traffic from illegal MAC or IP addresses. The DGS-1500 Series includes ARP Spoofing Prevention, which protects from attacks on the Ethernet network that may allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages to the network. For added security, the DHCP Server Screening feature screens rogue DHCP server packets from user ports to prevent unauthorized IP assignment.

Versatile Management
The DGS-1500 series provides a SmartConsole utility and a web-based management interface that enables administrators to remotely control their network down to the port level. The SmartConsole easily allows customers to discover multiple D-Link Web Smart Switches within the same L2 network segment. With this utility, users do not need to change the IP address of their PC. It also simplifies the initial setup of the Smart Switches. Switches within the same L2 network segment that are connected to the user’s PC are displayed on screen for instant access. This allows extensive switch configuration and basic setup of discovered devices including password changes and firmware upgrades. The DGS-1500 Series also supports D-View 6.0 and Compact Command Line Interface (CLI) through Telnet. D-View 6.0 is a Network Management System that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security. CLI management of the switches is possible via Telnet. This makes it possible to adjust basic settings, passwords, configuration files, and firmware with ease.

מאפיינים כללים

Standards and functions of ports
• IEEE 802.3 10BASE-T Ethernet (copper wire twisted-pair)
• IEEE 802.3u 100BASE-TX Fast Ethernet (copper wire twisted-pair)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (copper wire twisted-pair)
• Auto-negotiation
• Supports IEEE 802.3x Flow Control for full duplex mode
Number of Ports
• 48-port 10/100/1000 Mbit / s, 4 dual-speed SFP ports
Network cables UTP category
• 5, 5e (max. 100 m)
• EIA/TIA-568 100-ohm STP (maximum 100m)
Full / half duplex
• Full / half duplex for 10/100 Mbit / s
• Full duplex for Gigabit speed
Advanced Interface
• Auto-detect MDI / MDI-X
• Capacity of the switch: 104 Gbit / s
Switching Method
• Store-and-forward
MAC-address table
• 16 K entries on the device
Study of MAC-addresses
• Up to 256 static MAC-address entries
• Enable / disable MAC-address avtoizucheniya
Maximum packet forwarding rate of 64 bytes
• 77.4 Mpps
Packet buffer memory
• 1 MB on the device
D-Link Single IP Management
• Virtual stacking / clustering of up to 32 devices
Functions of level 2
• MAC-Address Table: 16K records
• Flow Control
  - 802.3x Flow Control
  - HOL blocking prevention
• IGMP Snooping
  - IGMP v1/v2 Snooping
  - Supports up to 256 IGMP-group
  - Supports up to 64 static multicast groups
  - IGMP on a VLAN
  - Support for IGMP Snooping Querier
• Spanning Tree Protocol
  - 802.1D STP
  - 802.1w RSTP
  - 802.1s MSTP3
• Loopback Detection
• 802.3ad Link Aggregation: max. number of groups on the device 26/8 ports per group
• Port Mirroring
  - One-to-One
  - Many-to-One
  - Support for Mirroring for Tx / Rx / Both
• The Cable Diagnostics
• Customizable interface MDI / MDIX
• Filtering of multicast
  - Redirect all non-registered groups
  - Filtering of unregistered groups
• Support for Jumbo-frames to 10000bayt
• 802.1Q
• Group VLAN
  - Max. 4K static VLAN groups
  - Max. VID 4094
• GVRP VLAN to 256 Dynamic VLAN
• Asymmetric VLAN
• Auto Voice VLAN
  - Max. 10 user defined OUI
  - Max. 8 by default defined OUI
• Auto Surveillance VLAN
QoS (Quality of Service)
• 802.1p Quality of Service
• 4 queues per port
• Processing Queue
  - Strict
  - Weighted Round Robin (WRR)
• CoS-based
  - 802.1p Priority Queues
  - DSCP
  - ToS3
  - IPv6 Traffic Class3
  - IPv6 flow label3
  - TCP / UDP port3
• Bandwidth Management
  - Based on the port (incoming / outgoing, with a step of 10/100/1000 and 64 kB / s)
Functions of Level 3
  - 64 static ARP
  - Support for Gratuitous ARP
• IPv6 Neighbor Discovery (ND) 3
• IP-interface: supports 4 interfaces
Routing Layer 2
• Default Routing
• Static Routing
  - Max. number of records of static IPv4 routes 32
  - Max. number of routes IPv4 hosts 128
  - Max. number of records static IPv6 routes 163
  - Max. number of routes IPv6 hosts 643
Access Control Lists (ACL)
• DGS-1500-52:
  - 50 profiles (maximum)
  - Max. 450 Access Rules
  - Each rule can be bound to a single port
• ACL-based
  - MAC-addresses
  - IPv4-address (ICMP / IGMP / TCP / UDP)
  - 802.1p
  - Type Ethernet DSCP
• Access Control 802.1X port-based
• Port Security
  - Supports up to 64 MAC-addresses per port
• Management of broadcast / multicast / unicast storm
• D-Link Safeguard Engine
• The DHCP Server Screening
• Bind IP-MAC-Port3
  - Supports 512 entries address bindings
  - ARP mode
  - Treatment of ACL
  - Support for DHCP Snooping
• Preventing ARP Spoofing Attacks
  - Max. 64 records
• Segmentation of Traffic
  - Support v1/v2/v3
  - Support IPv63
• 802.1X Authentication
  - Support for local / RADIUS database
  - Supports access control based on port
  - Support for EAP, OTP, TLS, TTLS, PEAP
• RADIUS-server IPv63
• 1213 MIB II
• 1493 Bridge MIB
• 1907 SNMP v2 MIB
• 1215 Trap Convention MIB
• 2233 Interface Group MIB
• D-Link Private MIB
• Power-Ethernet MIB4
Compliance with RFC
• RFC 783 TFTP
• RFC 854 Telnet-Server
• RFC 951 BootP / DHCP-client
• RFC 1157 SNMP v1, v2, v3
• RFC 1191 Path MTU Discovery
• RFC 1213 MIB II
• RFC 1215 MIB Traps Convention
• RFC 1350 TFTP
• RFC 1493 Bridge MIB
• RFC 1769 SNTP
• RFC 1542 BootP / DHCP-client
• RFC 1901 SNMP v1, v2, v3
• RFC 1907 SNMP v2 MIB
• RFC 1908 SNMP v1, v2, v3
• RFC 2068 FCS
• RFC 2131 BootP / DHCP-client
• RFC 2138 RADIUS authentication
• RFC 2139 RADIUS authentication
• RFC 2233 Interface Group MIB
• RFC 2246 SSL
• RFC 2475
• RFC 2570 SNMP v1, v2, v3
• RFC 2575 SNMP v1, v2, v3
• RFC 2598 CoS
• RFC 2616 FCS
• RFC 2618 RADIUS authentication
• RFC 2819 RMON v1
• RFC 2865 RADIUS authentication
• RFC 3164 System Log
• RFC 3195 System Log
• RFC 3411-17 SNMP
• RFC 3621 Power Ethernet MIB
• Cable Diagnostics
• Return to factory settings
• Web-GUI interface
• Single IP Management
• Compact CLI via Telnet
• Telnet-Server
• TFTP-client
• Customizable interface MDI / MDIX
 - Support v1/v2/v3
• SNMP Trap
• Trap for SmartConsole Utility
• System log
 - Max. 500 entries in the log
• BootP / DHCP-client
• ICMP v63
• IPv4/IPv6 Dual Stack3
• Automatic configuration of DHCP
• debug command
• Setting the time
  - SNTP
• RMONv1
• A trusted host
• PoE-based vremeni4
• A user account
• Upload / download the configuration file
• Backup / Update Software
• Smart Wizard
Technology Green ™ V3.0
• Energy savings:
  - When connecting the different states
  - Depending on the length of the cable
  - If you turn off the indicators
  - In standby mode, ports
  - In sleep mode the system

נתונים פיזיים

Input Power
• 100-240 VAC, 50/60 Hz internal universal power supply
Maximum power consumption
• 43.5 Watt
Power consumption in standby mode
• 20,68 In Vt/100
• 22,05 In Vt/240
Number of fans
• 2 smart fan
• 47.1 dB (max.)
Heat release
• 148,42 BTU / h
Operating temperature
• From -5 ° to 50 ° C
Storage temperature
• From -20 ° to 70 ° C
Operating humidity
• From 0% to 95% noncondensing
Storage humidity
• From 0% to 95% noncondensing
Dimensions (L x W x H)
• 440 mm x 250 mm x 44 mm (size to be installed in a standard 19-inch rack, the height of 1U)
• 4.1 kg
Diagnostic Lights
• Power (per device)
• Fan (per device)
• Link / Activity / Speed ​​(at 10/100/1000 Mbit / s)
• Link / Activity / Speed ​​(on port SFP)
• FCC Class A
• CE Class A
• ICES-003
• VCCI Class A
• C-Tick
• 201.517 h
• cUL, LVD

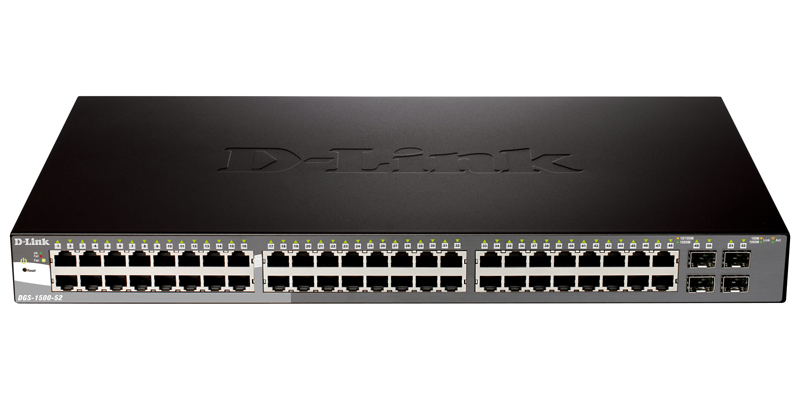

מראה מקדימה

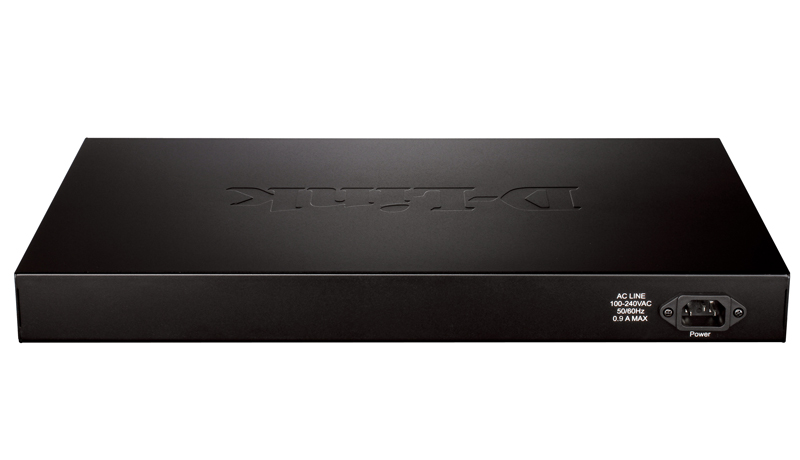

מראה מאחורה
