מתג שולחני עם 5 פורטים במהירות 10/100Mbps (מארז מתכת)
היכן לקנות


Ports 10/100 Mbit / s auto-sensing
Switch DES-1005D is equipped with 5-port 10/100 Mbit / s auto-sensing, allowing a small workgroup to easily connect to Ethernet and Fast Ethernet. These ports detect the speed of the network and an automatic alignment between standards 10BASE-T and 100BASE-TX, and the half-and full-duplex, which allows for the maximum possible speed for each device connected to the network.

Automatic detection of MDI / MDIX
All ports support auto-polarity of MDI / MDIX. This eliminates the need for crossover cables or ports uplink. Each port can be connected directly to a server, hub, router, or switch using a straight Ethernet-twisted-pair. In addition, Ethernet-ports are located on the front panel of the switch, which facilitates access to them, and the two color LEDs for each port to help you easily determine the status of the connection.

Flow control for secure transmission
All ports support flow control, 802.3x. This function prevents packet loss through transmission of a possible buffer overflow. By reducing packet loss, the switch provides a more reliable connection for all connected devices while web-surfing, online games or access multimedia portals.

Implementation of technology D-Link Green
Switch DES-1005D support function to plug-and-play is a device which uses D-Link Green, providing energy savings, reduced heat emission and a longer product life without sacrificing performance or functionality. The switch supports IEEE 802.3az Energy-Efficient Ethernet (EEE), which is determined by when the connected computer is turned off or when there is no Ethernet-traffic, and power is turned off on inactive ports, thus saving a considerable amount of energy.

מאפיינים כללים

Main functions
• Cost-effective solution Fast Ethernet for home networks and SOHO
• 5/8 x 10/100 Mbit / s Fast Ethernet
• Auto MDI / MDIX on all ports
• The method of switching: store-and-forward
• the half-and full-duplex speeds for Ethernet / Fast Ethernet
• IEEE 802.3x Flow Control
• Jumbo Frames: 2045 bytes
• Supports 802.1p QoS: 2 queues, Strict Mode
• Compliance with the RoHS Directive
• Installation of Plug-and-play

Switching matrix
• 1.0 Gb / s

• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• Auto-negotiation of ANSI / IEEE 802.3 NWay
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)


Data transfer rate
• Ethernet
- 10 Mbit / s (half duplex)
- 20 Mbit / s (full duplex)
• Fast Ethernet
- 100 Mb / s (half duplex)
- 200 Mbit / s (full duplex)

• Star

Media Interface Exchange
• Automatic detection of MDI / MDIX on all ports

Network cables
• 10BASE-T:
- UTP Cat. 3/4/5/5e (100 meters max.)
- EIA/TIA-586 100-ohm STP (100 meters max.)
• 100BASE-TX:
- UTP Cat. 5/5e (100m max.)
- EIA/TIA-568 100-ohm STP (100 meters max.)

• Port: Link / Activity
• On the device: Power

Switching method
• Store-and-forward

MAC-address table
• 2K

Study of MAC-addresses
• Automatic update

Filtration rate / packet
• Ethernet: 14,880 packets per second. to port
• Fast Ethernet: 148,800 packets per second. to port

Buffer RAM
• 384 Kbytes to the device

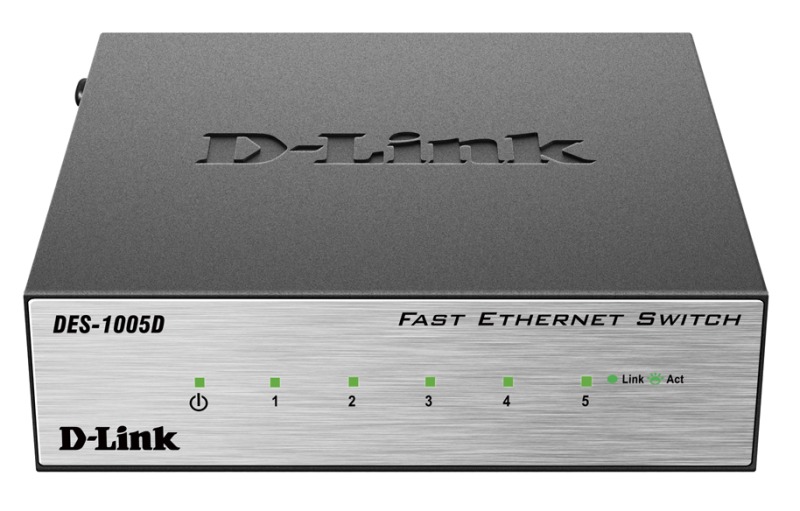

מראה מקדימה

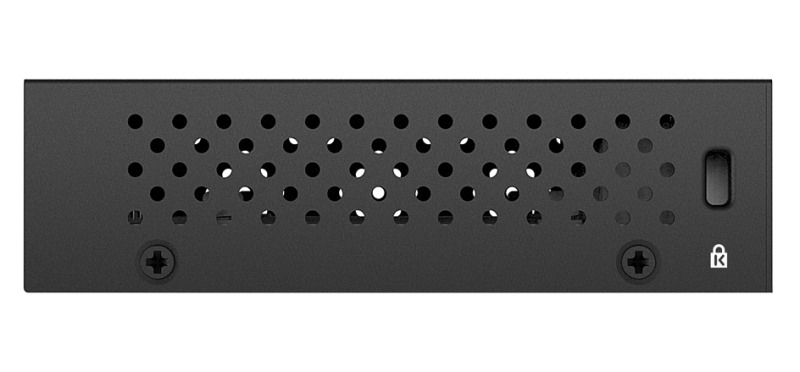

מראה מימין

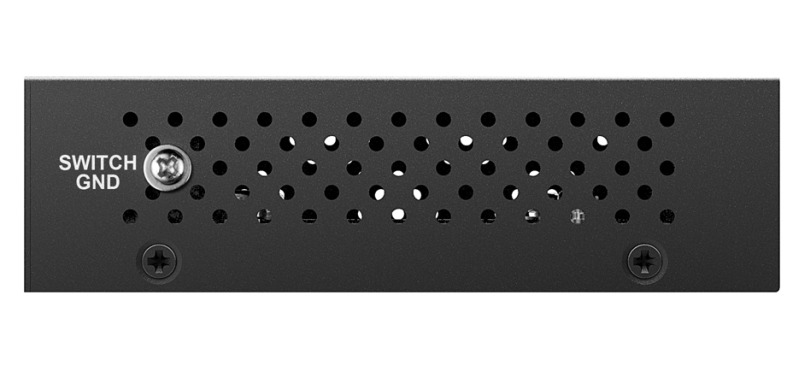

מראה משמאל

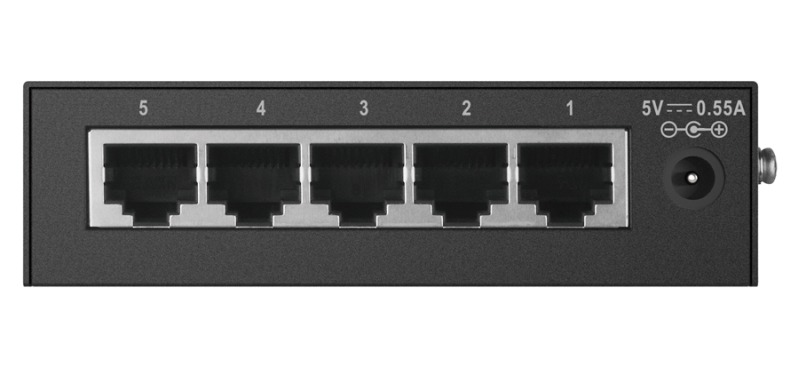

מראה מאחורה
