DIS-200G-12Sמיועד לפרויקטים

מתג תעשייתי מנוהל Layer 2 עם 10 פורטים 10/100/1000Base-T ו2 פורטים 1000Base-X SFP

תאור


The DIS-200G-12S Layer 2 Industrial Managed Switch is equipped with 10 10/100/1000BASE-T ports and 2 SFP ports. This switch features a robust design making it ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. The DIS-200G-12S furthermore integrates advanced management and security functions to provide a complete solution.

Durable and Reliable Design
The DIS-200G-12S switch is housed in a highly resistant IP30-rated metal casing to protect the switch from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects DIS-200G-12S from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of DIS-200G-12S while also being able to operate in a wider temperature range of up to 65 °C. For increased flexibility, the DIS-200G-12S switch can also be mounted on a DIN rail, wall mounted, or be installed in an equipment rack.

Additionally, the DIS-200G-12S switch features 6 kV surge protection on all copper ports to help prevent damage to the switch and connected devices caused by sudden power surges and lightning strikes. The in-built surge protection of up to 6 kV can mitigate the damage to the switch from both indoor and outdoor devices and network connections by absorbing the excess energy while still letting the amount of power through required for the switch to operate normally. This increases network reliability, reduces repair costs, and removes the need for replacement hardware in the event of an electrical surge or lightning strike.

High Redundancy and Reliability
The DIS-200G-12S switch supports ERPS quick failover recovery for ring topologies that ensures minimal downtime and avoids any loss of data in mission-critical deployment settings. Meanwhile, the dual power input allows for a redundant power supply to make sure the network continues to operate in the event of a primary power supply failure.

Surveillance Traffic Optimization
The DIS-200G-12S switch supports the Auto Surveillance VLAN feature. This automatically detects surveillance devices and puts them into a dedicated surveillance VLAN, segmenting their traffic from the rest of the network. This provides increased security of surveillance data, and gives the traffic a higher priority through the switch, reducing the chances of the video freezing or being delayed on live streams. A single switch can be used for both surveillance and data networks, removing the need for dedicated surveillance hardware while simultaneously reducing maintenance costs.

Easy Troubleshooting
The DIS-200G-12S switch features loopback detection and cable diagnostics to help network administrators find and solve network problems quickly and easily. Loopback detection is used to detect loops created by a specific port and automatically shuts down the affected port. Cable diagnostics helps network administrators quickly examine the quality of the copper cables, recognize the cable type, and detect cable errors.


מאפיינים כללים


Hardware Version
• A1

Number of Ports
• 10x 10/100/1000BASE-T ports
• 2 x SFP ports
• 1 x RJ-45 Console port
• Alarm Relay: 1 A at 24 V

Diagnostic LEDs
• SYS
• ALM
• PWR1/2/3
• Link/Activity/Speed

Port Functions
• IEEE 802.3 for Ethernet
• IEEE 802.3u for Fast Ethernet
• IEEE 802.3ab for Gigabit Ethernet
• IEEE 802.3z for Gigabit fiber
• IEEE 802.3az-compliant

Media Interface Exchange
• Auto-MDI/MDIX adjustment for all twisted pair ports

Switching Capacity
• 24 Gbps

Maximum Forwarding Rate
• 17.85 Mpps

MAC Address Table Size
• Up to 8K entries

Transmission Method
• Store-and-forward

Software Features
VLAN
• IEEE 802.1Q tagged VLAN
• Port-based VLAN
• Auto-Surveillance VLAN 2.0 (ASV 2.0)*
• Voice VLAN
• Asymmetric VLAN
• VLAN group
  - Supports 128 static VLAN groups
  - Max. 4094 VIDs
• GVRP*

L2 Features
• Flow Control
  - IEEE 802.3x Flow Control
  - HDL Blocking Prevention
• Jumbo frames up to 9216 bytes
• IGMP Snooping
  - IGMP v1/v2
  - IGMP v3*
  - Supports up to 64 groups
  - IGMP Snooping Querier
• MLD Snooping
  - MLD v1
  - MLD v2*
  - Supports up to 64 groups
  - MLD Snooping Querier
• IEEE 802.3ad Link Aggregation
  - Supports 6 groups per device, 8 ports per group
• Ethernet Ring Protection Switching* (ERPS, ITU-T G.8032)
• Loopback detection
• LLDP
• Port mirroring
  - One-to-One
  - Many-to-One
• Statistics
  - Tx Ok
  - Tx Error
  - Rx Ok
  - Rx Error
• Spanning Tree Protocol (STP)
  - IEEE 802.1D STP
  - IEEE 802.1w RSTP
  - IEEE 802.1s MSTP*

Quality of Service (QoS)
• IEEE 802.1p Quality of Service (QoS)
• 4 queues per port
• Queue handling
  - Strict Priority Queue (SPQ)
  - Weighted Round Robin (WRR)
• Port-based bandwidth control (ingress: 8 kbps)

Security
• D-Link Safeguard
• Traffic segmentation
• Broadcast/Multicast/Unknown Unicast Storm Control
• DoS attack prevention
• SSL
• Port security

AAA
• Web-based access control*
• IEEE 802.1X authentication*
• RADIUS*

Management
• Web-based UI (supports IPv4/IPv6)
• D-Link Network Assistant (DNA)
• Industry-standard CLI
• SNTP
• SNMP v1/v2c
• SNMP v3*
• SNMP trap
• Telnet server
• System Log
• DHCP client
• TFTP client
• LLDP
• D-Link Discovery Protocol (DDP)
• Dual images
• Dual configurations

OAM
• Cable diagnostics
• Dying Gasp*
• Optical transceiver Digital Diagnostics Monitoring (DDM)*

Green Technology
• Power saving by:
  - Link status detection
  - LED shut-off
  - Port shut-off
  - System hibernation

MIB/RFC Standards
• RFC768 UDP
• RFC791 IP
• RFC792 ICMP
• RFC793 TCP
• RFC826 ARP
• RFC1213 MIB II
• RFC1493 Bridage MIB
• RFC1907 SNMPv2 MIB
• RFC2668 802.3 MAU MIB
• RFC4133 Entity MIB
• RFC4363 IEEE 802.1p MIB
• ZoneDefense MIB
• Private MIB

Physical Parameters
Power Input
• 12 to 48 V DC terminal block dual input
• 12 V DC 4-pin DIN single power input

Power Consumption
• Standby mode: 5.94 W
• Maximum: 10.26 W

Heat Dissipation
• 35.01 BTU/h

MTBF
• 276,773 hours

Weight
• 2.5 kg

Dimensions
• 210 x 171.2 x 48 mm

Ventilation
• Fanless

Temperature
• Operating: -40° to 65°C
• Storage: -40° to 85°C

Humidity
• Operating: 0% to 95% non-condensing
• Storage: 0% to 95% non-condensing

Material
• IP30-rated metal casing

Installation
• DIN rail/wall/rack mountable

Certifications
• CE, FCC, BSMI

Safety
• UL60950-1

EMI
• CISPR 22, FCC Part 15B Class A

EMS
• EN 61000-4-2 ESD
• EN 61000-4-3 RS
• EN 61000-4-4 EFT
• EN 61000-4-5
• EN 61000-4-6 CS
• EN 61000-4-8

IEC Standards
• IEC 60068-2-27 Shock
• IEC 60068-2-32 Freefall
• IEC 60068-2-6 Vibration

* This feature will be supported in a future firmware release.


תקנים

הורדות

איורים

DIS-200G-12S/A

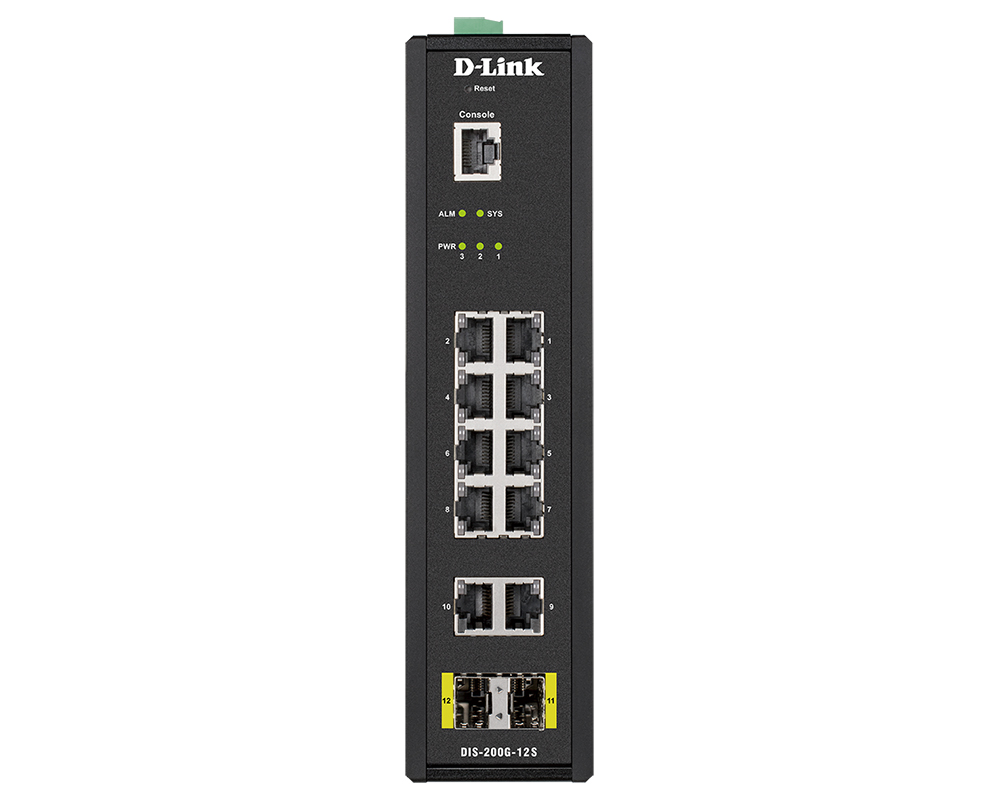

מראה מקדימה

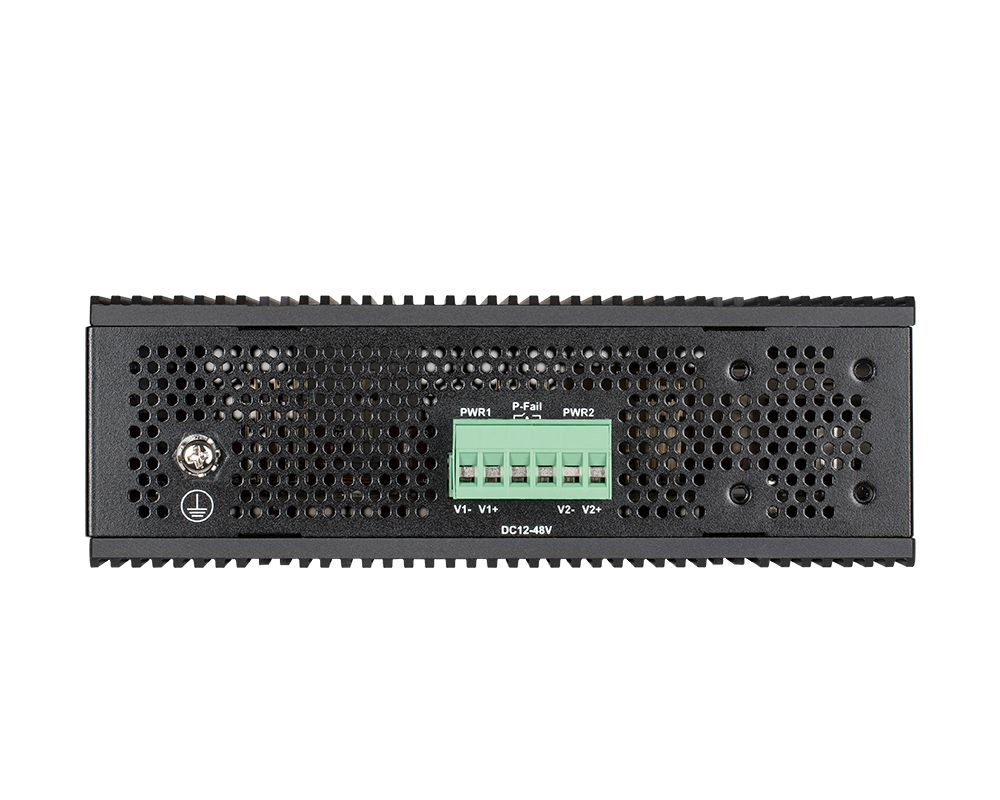

מראה מימין

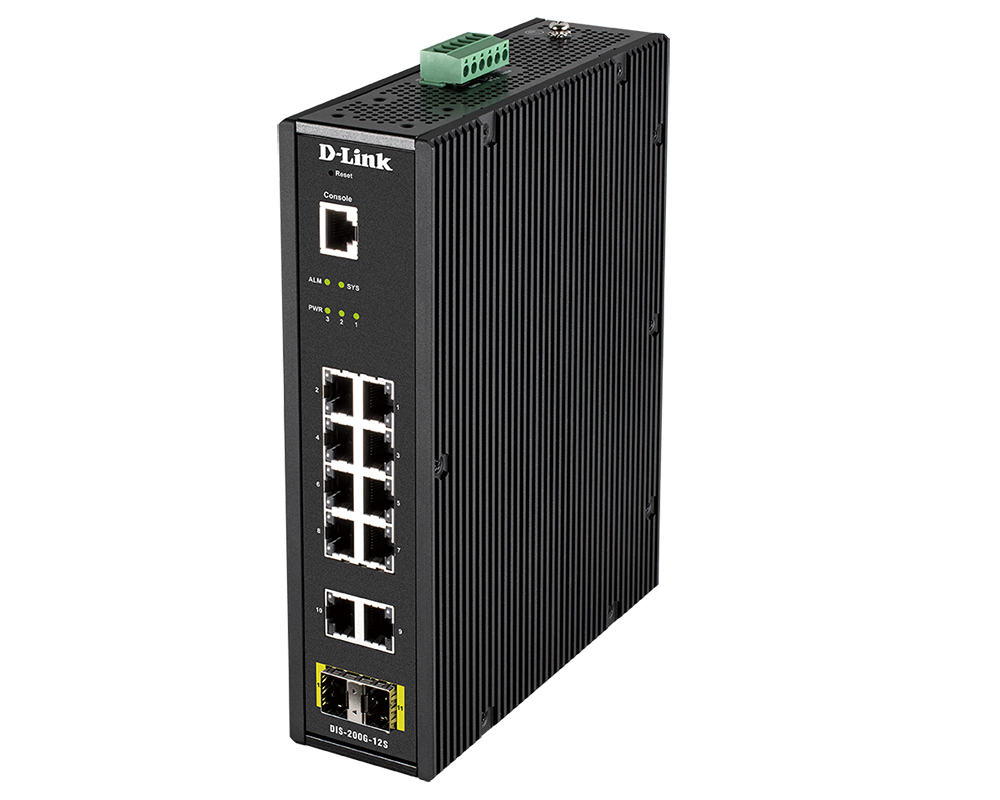

מראה משמאל

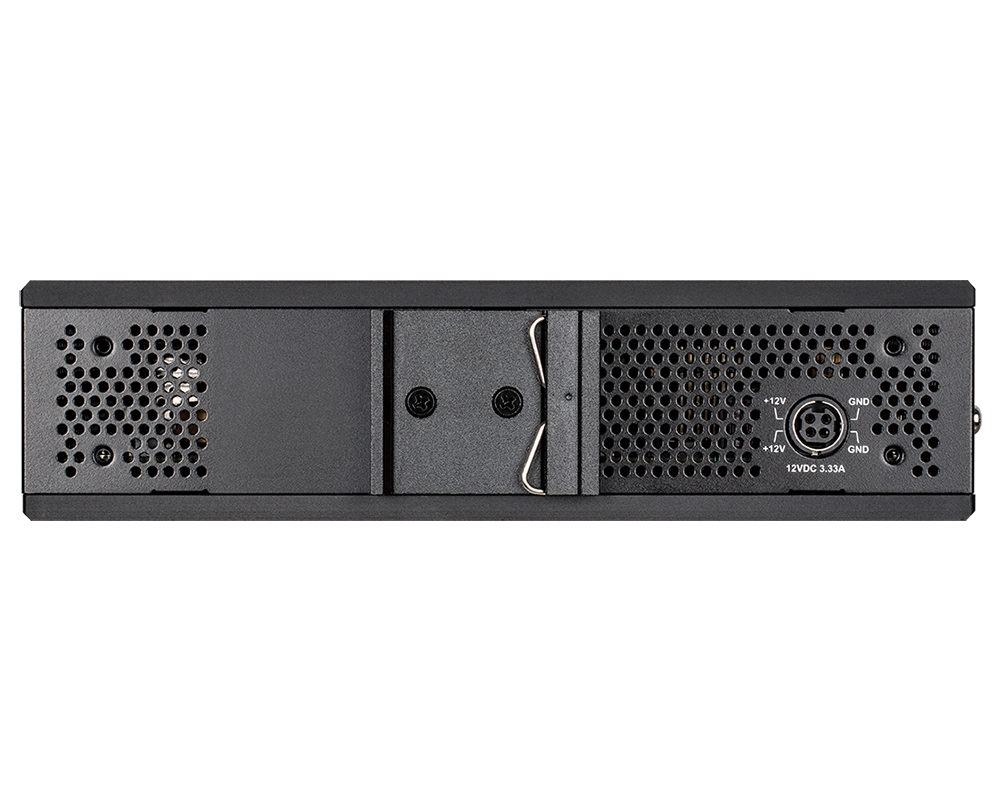

מראה מאחורה
