DIS-100E-5WEOL

Industrial Unmanaged Switch with 5 10/100Base-TX Ports

תאור


The DIS-100E-5W Industrial Unmanaged Switch is equipped with 5 10/100Base-TX ports. This switch features a robust design making it ideal for deployment in industrial and outdoor surveillance settings, capable of withstanding the harshest environments. In addition, the switch is Plug-and-Play, allowing for effortless and swift deployment.

Durable, Reliable, and Efficient
The DIS-100E-5W switch is housed in a highly resistant IP30-rated metal casing to protect the switch from harsh environmental conditions. The high electromagnetic compatibility (EMC) protects the DIS-100E-5W from unwanted effects when operating in environments with strong electromagnetic interference. Meanwhile, the fanless design extends the life of the DIS-100E-5W while also being able to operate in a wide temperature range from -40 °C up to 75 °C. For increased flexibility, the DIS-100E-5W can also be mounted on a DIN rail or conveniently mounted on a solid surface wall. In addition, the DIS-100E-5W supports dual power input which allows for a redundant power supply configuration to make sure the switches continue to operate in the event of a primary power supply failure.

Meanwhile, a powerful IEEE 802.1p Quality of Service (QoS) engine prioritizes network traffic
so that time-sensitive data is delivered efficiently, even during bursts of high data traffic. This helps ensure an optimal experience for streaming critical data such as from surveillance and recognition systems.

Fast Ethernet Connectivity
For most industrial applications, a high transmission data rate and bandwidth are not critical requirements. Fast Ethernet offers the ideal balance between cost and performance, delivering the necessary speed and bandwidth to meet the demand to connect more devices, while maintaining a lower total cost of ownership.

Green Ethernet Technology
The DIS-100E-5W features green technology, including IEEE 802.3az Energy-Efficient Ethernet (EEE), link status detection, and cable length detection. Energy Efficient Ethernet reduces the power consumption of the switches when network utilization is low, effectively lowering the cost of ownership during periods of inactivity. Link status detection automatically powers down ports when there is no link detected, saving power when the connected device has been shut down or disconnected. Cable length detection automatically adjusts the power output of the port based on the length of the cable, reducing the power requirements of the switch to only what is necessary for the installation.


מאפיינים כללים


Hardware Version
• A1

Number of Ports
• 5 10/100Base-TX ports

Alarm Relay
• 1 A at 48 V

Diagnostic LEDs
• ALM
• P1/P2
• Link/Activity/Speed

Port Functions
• IEEE 802.3 for Ethernet
• IEEE 802.3u for Fast Ethernet
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Media Interface Exchange
• Auto-MDI/MDIX adjustment for all twisted pair ports

Switching Capacity
• 1 Gbps

Transmission Method
• Store-and-forward

Maximum Forwarding Rate
• 0.744 Mpps

MAC Address Table Size
• Up to 1K entries

Advanced Features
• Broadcast/Multicast/Unicast Storm Control
• IEEE 802.1p Quality of Service (QoS) - 2 hardware queues per port

Physical Parameters
Power Input
• 12 to 58 V DC terminal block dual input

Power Consumption
• Maximum: 1.56 W
• Minimum: 0.95 W

Heat Dissipation
• 5.323 BTU/hr

MTBF
• > 25 years

Weight
• 0.32 kg

Dimensions
• 89.4 x 29.1 x 109.2 mm

Ventilation
• Fanless

Temperature
• Operating: -40° to 75°C
• Storage: -40° to 85°C

Humidity
• Operating: 5% to 95% non-condensing
• Storage: 5% to 95% non-condensing

Material
• IP30-rated metal casing

Installation
• DIN rail/wall mountable

Certifications
• UL/CE/FCC

Safety
• UL60950-1

EMI
• 47 CFR FCC Part 15 Subpart B (Class A)
• ICES-003 Issue 6 (Class A)

EMC
• EN61000-6-2
• EN61000-6-4

EMS
• EN 61000-4-2 ESD Level 3
• EN 61000-4-3 RS Level 3
• EN 61000-4-4 EFT Level 3
• EN 61000-4-5 Surge Level 3
• EN 61000-4-6 CS Level 3
• EN 61000-4-8

Environmental Tests
• IEC 60068-2-27 Shock
• IEC 60068-2-32 Freefall
• IEC 60068-2-6 Vibration


תקנים

הורדות

DIS-100E-5W  Industrial Unmanaged Switch with 5 10/100Base-TX Ports

איורים

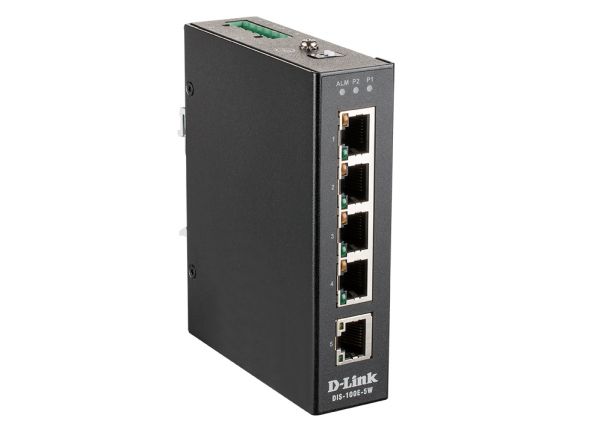

DIS-100E-5W/A

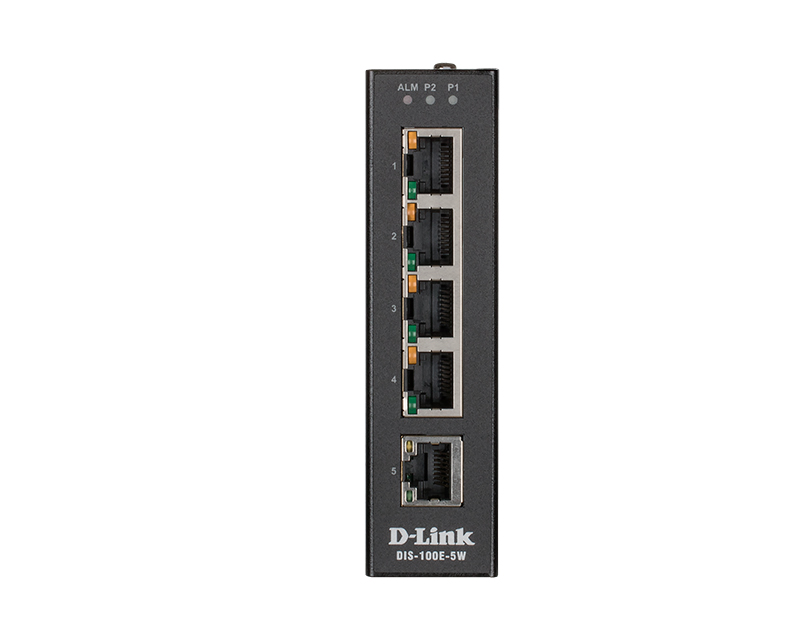

מראה מקדימה

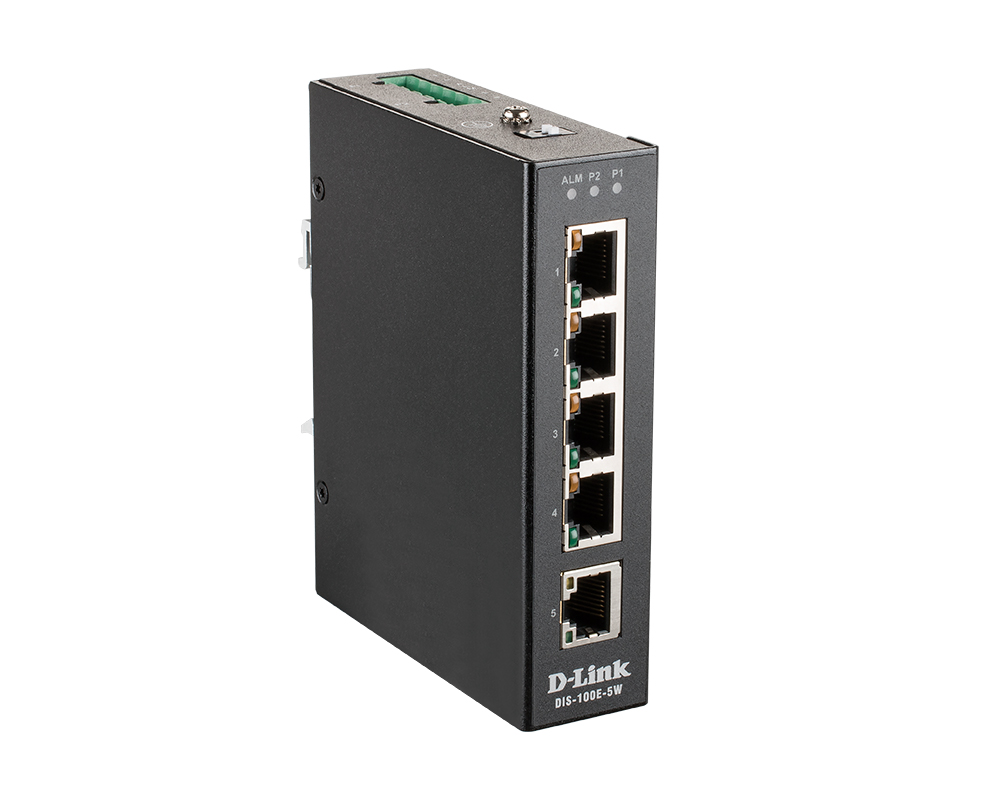

מראה מימין

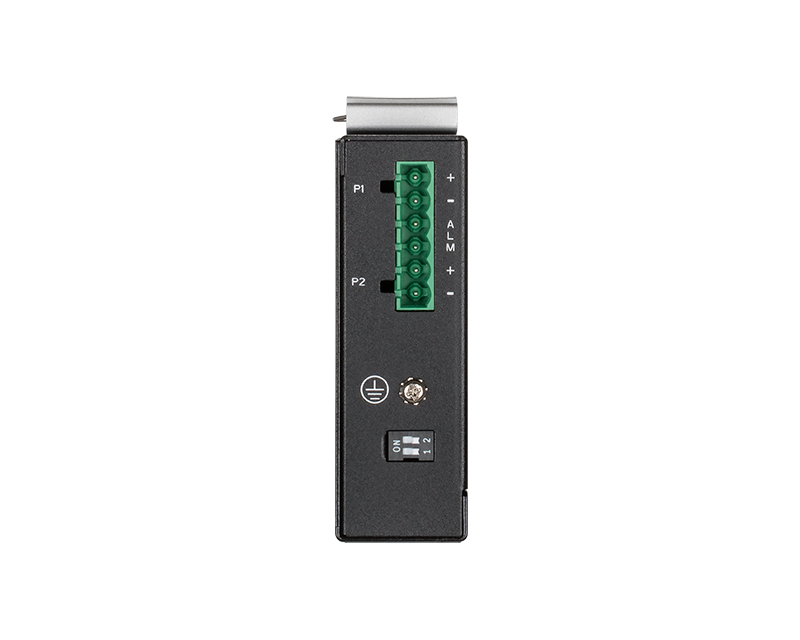

Top view

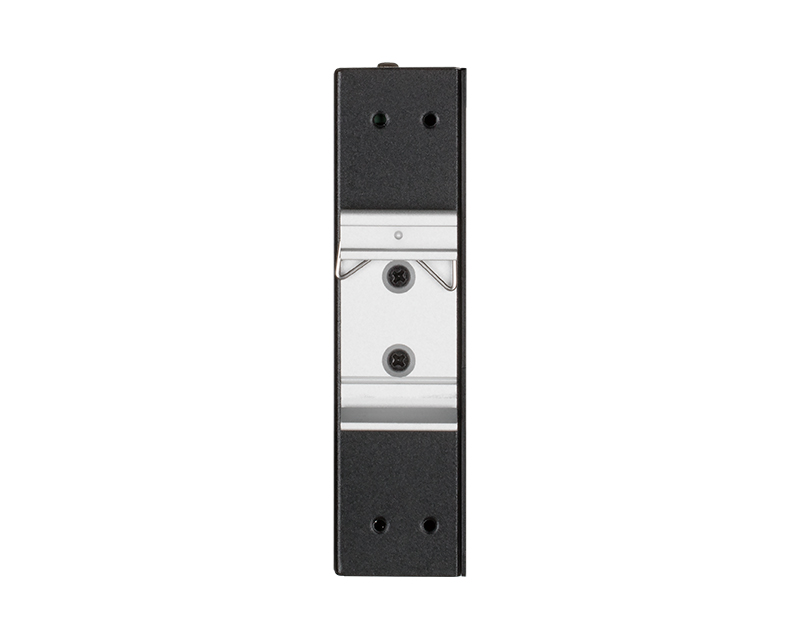

מראה מאחורה
