DES-3028_RFB
24 10/100Base-TX ports + 2 1000Base-T ports + 2 Combo 1000Base-T/SFP ports L2 Managed Switch
תאור
The DES-3028_RFB switch is a managed Layer 2 Ethernet switch designed as a premium device in the entry-level network management category. This switch offers very rich functions to let SMB and even enterprises set up a secure and effective departmental network at affordable cost. Outstanding features include high port densities, 2 Gigabit uplinks, comprehensive network security, granular bandwidth control and extensive network management. With this switch, businesses can now optimize their networks at both the function and cost levels for maximum results.
High Port Density

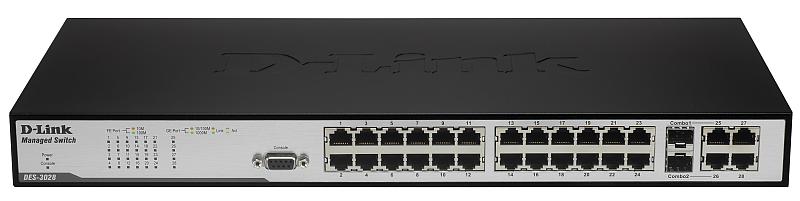

The DES-3028_RFB provides 24 Ethernet ports in low profile rack-mount cases. The switch is equipped with 2 Gigabit uplinks, with the SFP supporting both fiber Gigabit and 100Base-FX fiber connection for specific applications.
Security & Availability
The DES-3028_RFB supports many security features including Access Control List (ACL), 802.1X Port-Based/MAC-Based Access Control, 802.1X Guest VLAN, and RADIUS/TACACS+ authentication. To prevent malicious attack and virus/worm affection from overwhelming the switch with unnecessary workload, the DES-3028_RFB provides D-Link Safeguard Engine and CPU Interface Filtering functions to increase the switch's reliability and availability.
Resilience/Performance Enhancement
To enhance network resilience, the DES-3028_RFB provides Spanning Tree protocols, including 802.1D, 802.1w and 802.1s for redundant bridge paths. 802.3ad Link Aggregation provides the aggregated bandwidth between switches or server, For Quality of Service (QoS), it supports 802.1p Priority Queues and packet classification based on TOS, DSCP, MAC, IPv4, VLAN ID, Protocol type, User Defined Packet Content, enabling Internet voice, video and streaming media applications to run smoothly.
Traffic Monitoring/Bandwidth Control
Network administrators can define throughput levels for each port to manage bandwidth. The bandwidth control feature provides fine granularity with the ability to define limits down to 64Kbps segments. Broadcast storm control can reduce the level of damage that a virus attack can do to the network. The switch provides IGMP snooping to control multicast transmission, and port mirroring to facilitate diagnostics.
Management
The DES-3028_RFB supports standard-based management protocols such as SNMP, RMON, Telnet, web-based GUI, SSH/SSL security authentication and DHCP Relay Option 82. With DHCP auto-configuration, the administrator can pre-set configurations and save them in a TFTP server; individual switches can boot their IP from the server and load in the pre-set configurations. D-Link Single IP Management simplifies and speeds up management tasks, allowing multiple switches to be configured, monitored and maintained from any workstation running a web browser through one unique IP address. A virtual stack of the DES-3028 switch can be managed as a single object, with all units identified by a single IP address.
מאפיינים כללים
Number of Ports
• 24 x 10/100Base-TX ports
• 2 x 10/100/1000Base-T ports
• 2 x Combo 10/100/1000Base/SFP ports
Console Port
• RS-232 console port
Performance
• Switching Capacity: 12.8 Gbps
• Packet Forwarding Rate: 9.5 Mpps
• MAC Address Table: 8K entries
• SDRAM for CPU: 64 MB
• Packet Buffer: 512 KB
• Flash Memory: 8 MB
• Jumbo Frame Size: 2048 bytes for tagged, 2044 bytes for untagged)
Diagnostic LEDs
• Power (Per Device)
• Console (Per Device)
• Link/Activity (Per Port)
• Speed Indicator (Per Port)
Software Features
L2 Features
• IGMP Snooping v1, v2 (max. 256 groups)
• IGMP Snooping Fast Leave
• ISM VLAN
• 802.1D Spanning Tree
• 802.1w Rapid Spanning Tree
• 802.1s Multiple Spanning Tree
• BPDU filtering for each port
• STP Loopback Detection
• 802.3ad Link Aggregation:
• 8 ports per group / 6 groups per device
• Port Mirroring (One to One, Many to One)
• Jumbo frame support
VLAN
• 802.1Q
• VLAN static groups – 4К
• VLAN dynamic groups – 200
• GVRP
QoS (Quality of Service)
• 802.1p Class of Service (CoS)
• 4 queues 802.1p
• Queue handling
- Strict
- Weighted Round Robin (WRR)
• CoS based on
- Switch port
- VLAN ID
- TCP/UDP port number
- MAC address
- IPv4 address
- 802.1p priority queue
- TOS
- DSCP
- Protocol type
- Packet content
ACL (Access Control List)
• Up to 256 profiles / rules
• ACL based on
- Switch port
- VLAN ID
- 802.1p priority
- MAC address
- IPv4 address
- DSCP
- Protocol type
- TCP/UDP port number
- Packet content
- Time-based ACL
Security
• RADIUS and TACACS + authentication for access management
• RADIUS accounting for access management
• Port security (up to 16K MAC addresses per port)
• 802.1X
- Port-based Access Control
- MAC-based Access Control
• 802.1х Guest VLAN
• SSH v.1, v.2 / SSL v.3
• CPU Interface Filtering
• Traffic Segmentation
• Broadcast Storm Control
• D-Link Safeguard Engine
Bandwidth Control
• Rate limiting:
- up to 2 MB: min. granularity 64 KB
- up to 100 MB: min. granularity 1 MB
- above 100 MB: min. granularity 8 MB
DDM (Digital Diagnostics Monitoring)
• Yes
Management
• D-Link Single IP Management (SIM) v. 1.6
• Web-Based GUI
• Command Line Interface (CLI)
• Telnet Server/Client
• TFTP Client
• SNMP v.1, v.2c, v.3
• RMON v.1, v.2
• BootP/DHCP Client
• SNTP
• SYSLOG
• Dual image
• CPU Monitoring
• SNMP trap on MAC notification
• DHCP Auto Configuration
• DHCP relay
• DHCP relay опция 82
• SMTP Client (e-mail notification)
MIB Standards
• MIB II (RFC 1213)
• Bridge MIB (RFC 1493)
• SNMP v2 MIB (RFC 1907)
• RMON MIB (RFC 1757, 2819)
• RMON v2 MIB Probe config group (RFC 2021)
• Ether-like MIB (RFC 1643, 2358, 2665)
• 802.1p MIB (RFC 2674)
• IF MIB (RFC 2233, 2863)
• RADIUS Authentication Client MIB (RFC 2618)
• RADIUS Accounting Client MIB (RFC 2620)
• Ping & TRACEROUTE MIB (RFC 2925)
• Private MIB
Additional Management Software
• DS-510S D-View 5.1 SNMP Network Management Program (standard version)
• DS-510P D-View 5.1 SNMP Network Management Program (professional version)
Physical
Weight
• 2.36 kg
Dimensions
• 441 x 207 x 44 mm
Power Input
• 100 to 240 V AC, 50/60 Hz
MTBF
• 449,357 hours
Heat Dissipation
• 84.23 BTU/hr
Maximum Power Consumption
• 25 W
Ventilation
• Passive
Operating Temperature
• 0 to 40 °C
Storage Temperature
• -10 to 70 °C
Operating Humidity
• 5% to 90% RH
Safety Certifications
• cUL, LVD
EMI
• FCC Class A, CE, VCCI Class A, C-Tick
