DGS-3612G_RFBEOL EOS

L3 Managed Stackable Switch with 8 100/1000Base-X SFP Ports and 4 Combo 100/1000Base-T/SFP Ports
Recommended

תאור

The xStack DGS-3600 series of next generation Layer 3 Gigabit switches delivers performance, flexibility, security, multi-layer QoS and access, and redundant power option for SMB and enterprises. With high Gigabit port densities, SFP support, 10-Gigabit uplink options and advanced software functions, these switches can act as departmental access-layer devices or core switches to form a multi-level network structured with high-speed backbone and centralized servers. Telecom service providers can also take advantage of the high SFP density switches to form the core of their Fiber to the (FTTB) network that extends to the subscribers' sites.

Unparalleled Flexibility
Easy to deploy and simple to managed, the DGS-3600 series can be stacked with any switches supporting D-Link's Single IP Management to form a multi-level network structured with backbone and centralized high-speed servers. This virtual stack can comprise units located anywhere on the same network domain, and uses the optional 10-Gigabit uplinks to move intra-stack traffic at 20Gbps full duplex. It can eliminate single points of failures, cable distance barriers, physical stacking method limitations and the need for stacking cabling.

Redundant Ring Stacking
Alternatively, users can install one or two 10-Gigabit uplinks, depending on whether the linear or fault-tolerant ring stacking is implemented, to create a physical stack. Up to 12 units or 576 Gigabit ports can be configured for a stack. Using the low-cost coaxial cable as the medium to stack switches together, the DGS-3600 series provides not only high-bandwidth stacking but also the cost control capability that allows users to add 10-Gigabit uplinks strictly as needed. Modules with single 10-Gigabit XFP can also be installed in any of the open slots for uplink to servers or a fiber backbone.

Security, Performance & Availability
The DGS-3600 series provides a complete set of security features, which includes L2/L3/L4 multi-layer Access Control Lists and 802.1x user authentication via TACACS+ and RADIUS servers. In addition, it offers suppression capabilities and Layer 3 IP v4/v6 Static Routing to increase network performance and 3 security. Built-in D-Link ZoneDefense technology allows business to integrate the switch stack with D-Link NetDefend firewalls to implement a full coverage, proactive security architecture.

The DGS-3600 series offers extensive VLAN support including GARP/GVRP and 802.1Q VLAN to enhance security and performance. To support converged applications including VoIP , ERP, Intranet and video conference, a robust set of L2/L3/L4 QoS/CoS features ensures that critical network services are served with proper priority. To prevent malicious flooding traffic caused by worm/virus infections, the DGS-3600 series provides D-Link Safeguard Engine to increase the switch's reliability, serviceability and availability . Bandwidth Control can be flexibly set for each port using pre-defined thresholds to assure a committed level of service for end users. For advanced applications, per-flow bandwidth control allows easy fine-tuning of service types based on specific IP addresses or protocols.

מאפיינים כללים

Interfaces
• 8 SFP Slots
• 4 Combo 10/100/1000Base-T Ports
• RS-232 Console Port

Performance
• Switching Capacity: 24 Gbps
• Packet Forwarding Rate: 17.86 Mpps
• Packet Buffer: 2 MB
• MAC Address Table: 16K Entries
• IPv4/v6 Static Routing Table: 12K Entries
• IPv6 Routing Table: 6K Entries
• IPv4 Host Table: 8K Entries
• IPv6 Host Table: 4K Entries
• Jumbo Frame Size: 9,216 bytes

Software Features
Stackability
• Virtual Stacking Support
  - D-Link Single IP Management v1.6
  - Up to 32 devices per virtual stack

L2 Features
• MAC Address Table: 16K
• Flow Control
  - 802.3x Flow Control
  - HOL Blocking Prevention
• Jumbo Frame up to 9,216 Bytes
• IGMP snooping
  - IGMP v1/v2/v3 Snooping
  - Supports 1K groups
  - IGMP Snooping Fast Leave
  - Host-based IGMP Fast Leave
• MLD Snooping
  - MLD v1 Snooping
  - Supports 1K groups
  - MLD Snooping Fast Leave
• Spanning Tree
  - 802.1D STP
  - 802.1w RSTP
  - 802.1s MSTP
  - Per port / per device BPDU filtering
  - Root Restriction
• Loopback Detection
• 802.3ad Link Aggregation
• Max. 32 groups per device
  - 8 Gigabit ports
• Port Mirroring
  - One-to-One
  - Many-to-One
  - Flow-based Mirroring
  - RSPAN
• L2 Protocol Tunneling

VLAN
• VLAN Group
  - Max. 4K Static VLAN Groups
  - Max. 255 Dynamic VLAN Groups
• 802.1Q Tagged VLAN
• 802.1v Protocol VLAN
• GVRP
• Double VLAN (Q-in-Q)
  - Port-based Q-in-Q
  - Selective Q-in-Q
• MAC-based VLAN

L3 Features
• 256 IP interfaces
• VRRP
• IPv6 Tunneling
  - Static
  - ISATAP
  - GRE
  - 6to4
• IPv6 Ready Phase 1/2
• Proxy ARP
• Gratuitous ARP

L3 Routing
• 12K hardware routing entries shared by IPv4/v6
  - Max. 12K IPv4 routes
  - Max. 6K IPv6 routes
• 8K hardware L3 forwarding entries shared by IPv4/v6
  - Max. 8K IPv4 entries
  - Max. 4K IPv6 entries
• 256 static routing entries for IPv4, 128 entries for IPv6
  - Supports ECMP/WCMP
• Policy-based Routing
• RIP v1/v2
• RIPng (IPv6)
• OSPF
  - OSPF v2
  - OSPF v3 (IPv6)
  - OSPF Passive Interface
  - Stub/NSSA Area
  - OSPF Equal Cost Route
• BGP v4

Multicasting
• 1K hardware multicast groups
• PIM-DM
• PIM-SM
• PIM Sparse-Dense Mode
• DVMRP v3
• IGMP v1/v2/v3

QoS (Quality of Service)
• 802.1p Class of Service (CoS)
• 8 queues
• Queue Handling
  - Strict
  - Weighted Round Robin (WRR)
  - Strict + WRR
• CoS based on
  - Switch Port
  - VLAN ID
  - 802.1p Priority Queues
  - MAC Address
  - IPv4/v6 Address
  - DSCP
  - Protocol Type
  - IPv6 Traffic Class
  - IPv6 Flow Label
  - TCP/UDP Port
  - User-defined Packet Content
• Supports following actions for flows:
  - Remark 802.1p Priority Tag
  - Remark TOS/DSCP Tag
  - Bandwidth Control
  - Flow Statistics
  - Committed Information Rate (CIR), min. granularity 1 Kbps
• Bandwidth Control
  - Port-based (Ingress/Egress, min. granularity 64 Kbps)
  - Flow-based (Ingress, min. granularity 64 Kbps)
• Time-based QoS

ACL (Access Control List)
• Up to 1792 access rules
• ACL based on
  - 802.1p Priority
  - VLAN ID
  - MAC Address
  - Ether Type
  - IPv4/v6 Address
  - DSCP
  - Protocol Type
  - TCP/UDP Port Number
  - IPv6 Traffic Class
  - IPv6 Flow Label
  - User-defined Packet Content
• ACL Statistics
• Time-based ACL

Security
• SSH v1/v2
• SSL v1/v2/v3
• Port Security up to 16 MAC addresses per port
• Broadcast/Multicast/Unicast Storm Control
• Traffic Segmentation
• IP-MAC-Port Binding
  - ARP Packet Inspection
  - IP Packet Inspection
  - DHCP Snooping
  - DHCPv6 and NDP Snooping
  - Supports up to 500 Address Binding Entries per device
• D-Link Safeguard Engine
• DHCP Server Screening
• CPU Interface Filtering
• ARP Spoofing Prevention
• BPDU Attack Protection

AAA
• 802.1X
  - Port-based Access Control
  - Host-based Access Control
  - Dynamic VLAN Assignment
• Web-based Access Control (WAC)
  - Port-based Access Control
  - Host-based Access Control
  - Dynamic VLAN Assignment
• MAC-based Access Control (MAC)
  - Port-based Access Control
  - Host-based Access Control
  - Dynamic VLAN Assignment
• Microsoft NAP
  - Supports 802.1X NAP
  - Supports DHCP NAP
• Guest VLAN
• RADIUS and TACACS+ authentication for switch access
• 3-Level user account

DDM (Digital Diagnostics Monitoring)
• Yes

Management
• Web-based GUI
• Command Line Interface (CLI)
• Telnet Server
• Telnet Client
• TFTP Client
• ZModem
• SNMP v1/v2c/v3
• SNMP Trap
• System Log
• RMON v1
  - Supports 1,2,3,9 Groups
• RMON v2
  - Supports ProbeConfig Group
• sFlow
• LLDP
• BootP/DHCP Client
• DHCP Auto-Configuration
• DHCP Relay
• DHCP Relay Option 60; 61
• DHCP Relay Option 82
• DHCP Server
• Flash File System
• Multiple Images
• Multiple Configurations
• CPU Monitoring
• Debug Command
• SNTP
• ICMPv6
• IPv6 Neighbor Discovery (ND)
• DHCPv6 Client
• DHCPv6 Relay
• DHCPv6 Server
• Cable Diagnostics

MIB/IETF Standards
• RFC1213 MIB-II
• RFC1493 Bridge MIB
• RFC1907 SNMPv2 MIB
• RFC2571~2576 SNMP MIB
• RFC1271, 2819 RMON MIB
• RFC2021 RMON v2 MIB
• RFC2665 Ether-like MIB
• RFC2668 MAU MIB
• RFC2674 802.1p MIB
• RFC2233, 2863 IF MIB
• RFC2618 RADIUS Authentication Client MIB
• RFC1724 RIP v2 MIB
• RFC1850 OSPF v2 MIB
• RFC2096 IP Forwarding Table MIB (CIDR)
• RFC2787 VRRP MIB
• RFC2932 IPv4 Multicast Routing MIB
• RFC2934 PIM MIB for IPv4
• RFC2620 RADIUS Accounting Client MIB
• RFC2933 IGMP MIB
• Ping MIB
• Traceroute MIB
• D-Link Private MIB
• RFC768 UDP
• RFC783 TFTP
• RFC 791 IP
• RFC 792 ICMP
• RFC 793 TCP
• RFC 826 ARP
• RFC854 Telnet
• RFC951, 1542 BootP
• RFC2068 HTTP
• RFC2338 VRRP
• RFC2529, 3053, 3056 IPv6 Tunnel
• RFC2138 RADIUS
• RFC2139 RADIUS Accounting
• RFC1492 TACACS
• RFC3176 sFlow
• RFC2598 DiffServ Expedited Forwarding

Additional Redundant Power Supply
• DPS-500

Physical  Parameters
Weight
• 3.7 kg (without modules)

Dimensions
• 441 x 389 x 44 mm
• 19-inch rack mountable, 1U height

Power Input
• 100 to 240 V AC, 50/60 Hz, internal power supply with the PFC active system

MTBF
• 109,335 hours

Heat Dissipation
• 153.55 BTU/hr

Maximum Power Consumption
• 50 W

Acoustics
• < 52.1 dB

Operating Temperature
• 0 to 40 °C

Storage Temperature
• 10 to 70 °C

Operating Humidity
• 10% to 90% RH non-condensing

Storage Humidity
• 5% to 90% RH non-condensing

Safety
• cUL, CB

EMI
• FCC Class A, CE, C-Tick, VCCI

Certificates
• MEF 9,14

תקנים

הורדות

DGS-3612G_RFB  L3 Managed Stackable Switch with 8 100/1000Base-X SFP Ports and 4 Combo 100/1000Base-T/SFP Ports

איורים

DGS-3612G_RFB/A

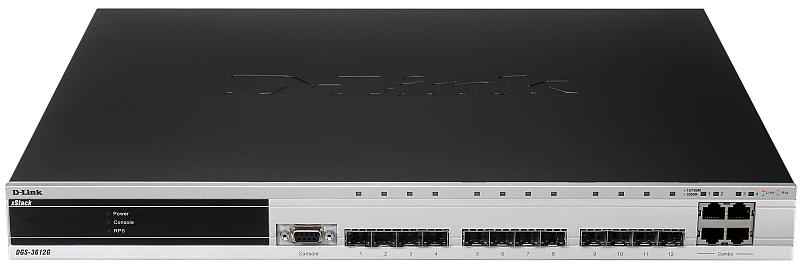

מראה מקדימה

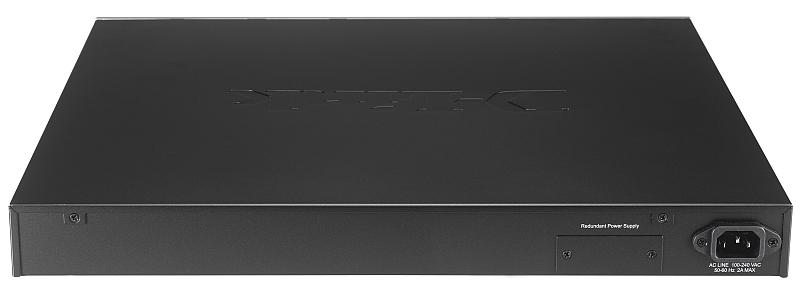

מראה מאחורה
