DGS-1210-20

Web Smart Switch with 16 10/100/1000Base-T and 4 100/1000Base-T/SFP combo ports

תאור

The D-Link DGS-1210 Series is the latest generation of switches to provide a range of physical interface types, multiple management interfaces, and advanced Layer 2 features. With all of these features combined, the DGS-1210 Series provides a cost-efficient and flexible solution for expanding any business network.

Seamless Integration
The DGS-1210-20 switch is equipped with 16 10/100/1000Base-T ports and 4 100/1000Base-T/SFP combo ports, allowing you to choose the most suitable media type for your requirements.

Advanced Features
The DGS-1210-20 switch comes equipped with a complete lineup of L2 features, including IGMP snooping, port mirroring, Spanning Tree Protocol (STP), and Link Aggregation Control Protocol (LACP). The IEEE 802.3x Flow Control function allows servers to directly connect to the switch
for fast, reliable data transfers. The switch also supports advanced features such as static routes, which allow network administrators to divide the network into VLANs, increasing network efficiency. Network maintenance features include loopback detection and cable diagnostics. Loopback detection significantly speeds up troubleshooting by automatically detecting and shutting down switching loops. The cable diagnostics feature, designed primarily for administrators and customer service representatives, determines the cable quality and quickly discovers errors, allowing for hassle-free diagnostics and maintenance.

Auto Surveillance VLAN and Auto Voice VLAN
The DGS-1210-20 supports Auto Voice VLAN and Surveillance Mode, which allows voice and video traffic to be automatically identified and handled differently to regular network traffic. Auto Voice VLAN detects Voice over IP (VoIP) traffic and automatically segments it from the rest of the network, increasing security and allowing Quality of Service (QoS) to be applied. Surveillance Mode detects compatible ONVIF cameras and places them in a surveillance VLAN, allowing a single switch to be used for voice, video, and data, removing the need for dedicated hardware and reducing maintenance costs. Surveillance Mode also includes its own Web UI, making surveillance features easily accessible and simplifying management of your surveillance network.

Secure your Network
D-Link's innovative Safeguard Engine protects the switches against traffic flooding caused by virus attacks. The switch also supports 802.1X port-based authentication, allowing the network clients to be authenticated through external RADIUS servers. The Access Control List (ACL) feature enhances network security and helps to protect the internal IT network. The DGS-1210-20 also features Address Resolution Protocol (ARP) spoofing prevention, which provides protection from attacks on the network that could allow an intruder to sniff data frames, modify traffic, or bring traffic to a halt altogether by sending fake ARP messages. To prevent ARP spoofing attacks,
the switch uses packet control ACLs to block invalid packets that contain fake ARP messages. For added security, the DHCP server screening feature filters DHCP replies on unauthorized ports to prevent them from being assigned an IP address.

Versatile Management
The DGS-1210-20 switch comes with the D-Link Network Assistant (DNA) utility that enables administrators to remotely control their network down to the port level. The D-Link Network Assistant utility furthermore allows customers to easily discover multiple D-Link Smart Managed Switches within the same L2 network segment and display them on-screen for instant access. With this utility, users do not need to change the IP address of their PC. This allows for simultaneous configuration and basic setup of all discovered devices, including password changes and firmware upgrades. The switch also supports D-View 7.0 and Command Line Interface (CLI) through Telnet. D-View 7.0 is a network management system that allows for the central management of critical network characteristics such as availability, reliability, resilience, and security.

מאפיינים כללים

General Port Standards & Functions
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twisted-pair copper)
• IEEE 802.3z 1000Base-X
• IEEE 802.3az Energy Efficient Ethernet
• IEEE 802.3x Flow Control
• Auto-negotiation

Number of Ports
• 16 10/100/1000Base-T
• 4 combo 100/1000Base-T/SFP

Network Cables
• UTP Cat. 5, Cat. 5e (100 m max.)

Full/Half Duplex
• Full/half duplex for 10/100 Mbps speeds
• Full duplex for Gigabit speed

Media Interface Exchange
• Auto or configurable MDI/MDIX

Performance
Switching Capacity
• 40 Gbps

Transmission Method
• Store-and-forward

MAC Address Table
• 8K entries

MAC Address Update
• Up to 256 static MAC entries

Maximum 64 bytes packet forwarding rate
• 29.8 Mpps

Packet Buffer Memory
• 512 KB per device

Physical & Environmental
Power Input
• 100 to 240 V AC 50/60 Hz, internal universal power supply

Maximum Power Consumption
• 13.08 W

Standby Power Consumption
• 5.47 W/100 V, 5.56 W/240 V

Fan Quantity
• 0

Acoustics
• 0 dB(A)

Heat Dissipation
• 44.62 BTU/hr

Operating Temperature
• -5 to 50°C

Storage Temperature
• -20 to 70°C

Operating Humidity
• 0% to 95% non-condensing

Storage Humidity
• 0% to 95% non-condensing

Dimensions
• 280 x 180 x 44 mm

Weight
• 1.75 kg

Diagnostic LEDs
• Power (per device)
• Link/Activity/Speed (per port)

MTBF
• 1,087,100 hours

Certifications
• CE Class A
• VCCI Class A
• FCC Class A
• cUL
• BSMI
• CCC
• C-Tick

Software Features
L2 Features
• MAC Address Table
  - 8K entries
• IGMP Snooping
  - IGMP v1/v2 Snooping
  - IGMP v3 awareness
  - Supports 256 IGMP groups
  - Supports at least 64 static multicast addresses
  - IGMP per VLAN
  - Supports IGMP Snooping Querier
• Loopback Detection
• 802.3ad Link Aggregation:
  - Maximum of 8 groups/8 ports per group
• LLDP
• LLDP-MED
• Jumbo Frame
  - Up to 10,000 bytes
• Spanning Tree Protocol
  - 802.1D STP
  - 802.1W RSTP
  - 802.1s MSTP
• Flow Control
  - 802.3x Flow Control
  - HOL Blocking Prevention
• Port Mirroring
  - One-to-One
  - Many-to-One
  - Supports Mirroring for Tx/Rx/Both
• Multicast Filtering
  - Forwards all unregistered groups
  - Filters all unregistered groups
• Configurable MDI/MDIX
• MLD snooping
  - MLD v1
  - MLD v2 awareness
  - 256 MLD groups

VLAN
• 802.1Q
• VLAN Group
  - Max. 256 static VLAN groups
  - Configurable VID from 1 - 4094
• Asymmetric VLAN
• Auto Voice VLAN
  - Max. 10 user-defined OUI
  - Max. 8 default OUI
• Auto Surveillance VLAN

QoS (Quality of Service)
• 802.1p
• 8 queues per port
• Queue Handling
  - Strict
  - Weighted Round Robin (WRR)
• CoS based on
  - 802.1p priority queues
  - DSCP
  - MAC address
  - EtherType
  - IP address
  - Protocol type
  - ToS
  - IP precedence
  - IPv6 Traffic Class
  - TCP/UDP port
• Bandwidth Control
  - Port-based (Ingress/Egress, min. granularity 10/100/1000 is 16 Kb/s)

L3 Features
• IP interface
  - Supports 4 interfaces
• IPv6 Neighbor Discovery (ND)
• Static routing
  - 124 IPv4 static route entries
  - 50 IPv6 static route entries

Access Control List (ACL)
• Max. 50 access lists
• Max. 768 rules shared by IPv4, MAC, and IPv6
• Each rule can only be associated with a single port
• ACL based on
  - TCP/UDP port
  - 802.1p priority queue
  - VLAN
  - MAC address
  - IP address
  - EtherType
  - DSCP
  - Protocol type
  - IPv6 traffic class

Security
• Broadcast/Multicast/Unicast Storm Control
• D-Link Safeguard Engine
• Traffic segmentation
• SSH v2
• SSL
• TLS v1.3
• DoS attack prevention
• 802.1X Port-based Access Control
• Port Security
  - Supports up to 64 MAC addresses per port
• ARP Spoofing Prevention
  - Max. 127 entries
• DHCP Server Screening
• IP-MAC-Port Binding (Smart Binding)
  - ARP Inspection
  - IPv4 Inspection
  - IPv6 Inspection
  - DHCP Snooping

AAA
• 802.1X Authentication
  - Supports local/RADIUS database
  - Supports port-based access control
  - Supports EAP, OTP, TLS, TTLS, PEAP
• IPv6 RADIUS server
• Support MD5 authentication
• Guest VLAN

OAM
• Cable Diagnostics
• Factory Reset

Management
• Web-based GUI
• D-Link Network Assistant Utility
• Compact CLI
• Telnet Server
• TFTP Client
• Configurable MDI/MDIX
• SNMP v1/v2c/v3
• SNMP Trap
• Backup/upgrade firmware
• Smart Wizard
• Upload/download configuration file
• BootP/DHCP Client
• System Log
  - Max. 500 log entries
• SNTP
• ICMP v6
• IPv4/v6 Dual Stack
• DHCP Auto Configuration
• Time setting
  - SNTP
• RMONv1
• Trusted host
• Dual image
• Dual configuration
• CPU monitoring

D-Link Green 3.0 Technology
• Power Saving by:
  - Link status
  - Cable length detection
  - Port shut off
  - System hibernation

MIB/RFC
• RFC783, 1350 TFTP
• RFC791 IP
• RFC768 UDP
• RFC793 TCP
• RFC792 ICMPv4
• RFC2463, 4443 ICMPv6
• RFC826 ARP
• RFC951, 1542, 2131 BootP/DHCP Client
• RFC1212 Concise MIB Definitions
• RFC1213 MIB II
• RFC1215 MIB Traps Convention
• RFC1350 TFTP
• RFC1493 Bridge MIB
• RFC1769 SNTP
• RRFC1157, 2570, 2573, 2575, 2576 SNMP MIB
• RFC1442, 1901, 1902, 1903, 1904, 1905, 1906, 1907, 1908, 2578, 3418 SNMPv2 MIB
• RFC271, 1757, 2819 RMON MIB
• RFC2021 RMONv2 MIB
• RFC1398, 1643, 1650, 2358, 2665 Ether-like MIB
• RFC1321, 2284, 2865, 2716, 3580 Extensible Authentication Protocol (EAP)
• RFC2674 802.1p MIB
• RFC2461, 4861 Neighbor Discovery for IPv6
• RFC2462, RFC4862 IPv6 Stateless Address Auto-configuration (SLAAC)
• RFC2464 IPv6 over Ethernet and definition
• RFC4291 IPv6 Addressing Architecture
• RFC2893, 4213 IPv4/IPv6 dual stack function
• RFC2233 Interface Group MIB
• RFC2138, 2139, 2618, 2865 RADIUS Authentication Client MIB
• RFC2246 SSL
• RFC2475, 2598 CoS
• RFC3164, 3195 System Log
• RFC3411, 3412, 3413, 3414, 3415, 3416, 3417 SNMPv3
• RFC4022 MIB for TCP
• RFC4113 MIB for UDP
• RFC2389 MIB for Diffserv.
• RFC2620 RADIUS Accounting Client MIB
• Private MIB
• DDP MIB
• LLDP-MED MIB

תקנים

הורדות

DGS-1210-20/F2A  Web Smart Switch with 16 10/100/1000Base-T and 4 100/1000Base-T/SFP combo ports

איורים

DGS-1210-20/F2
מראה מקדימה

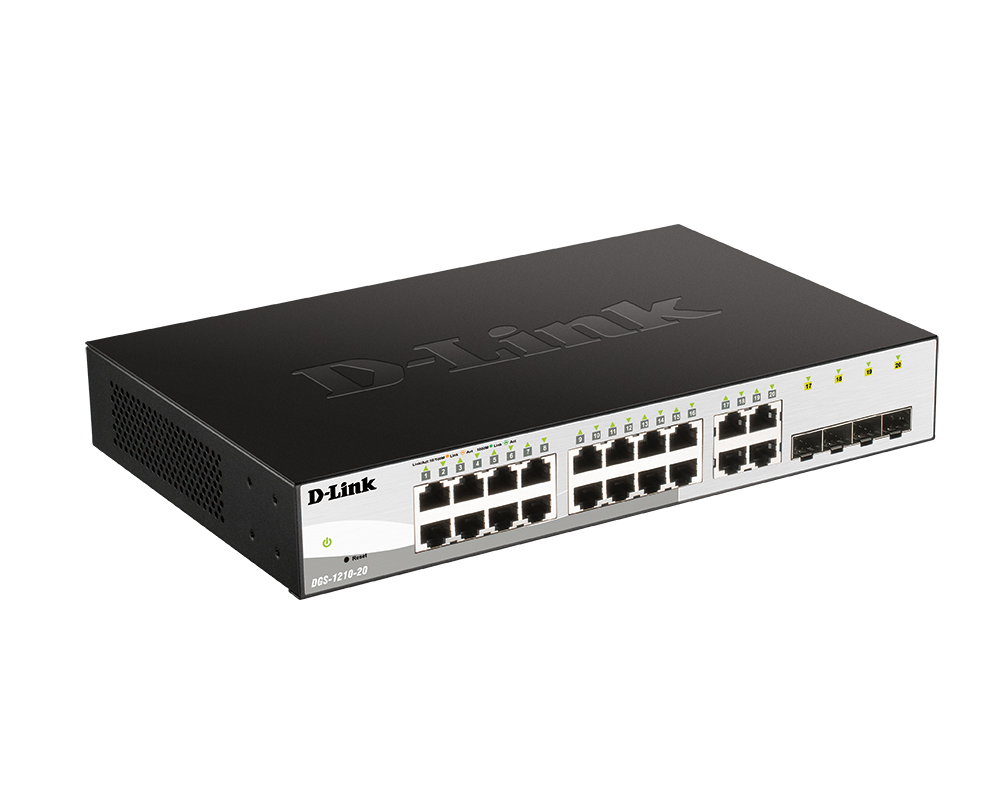

מראה מימין

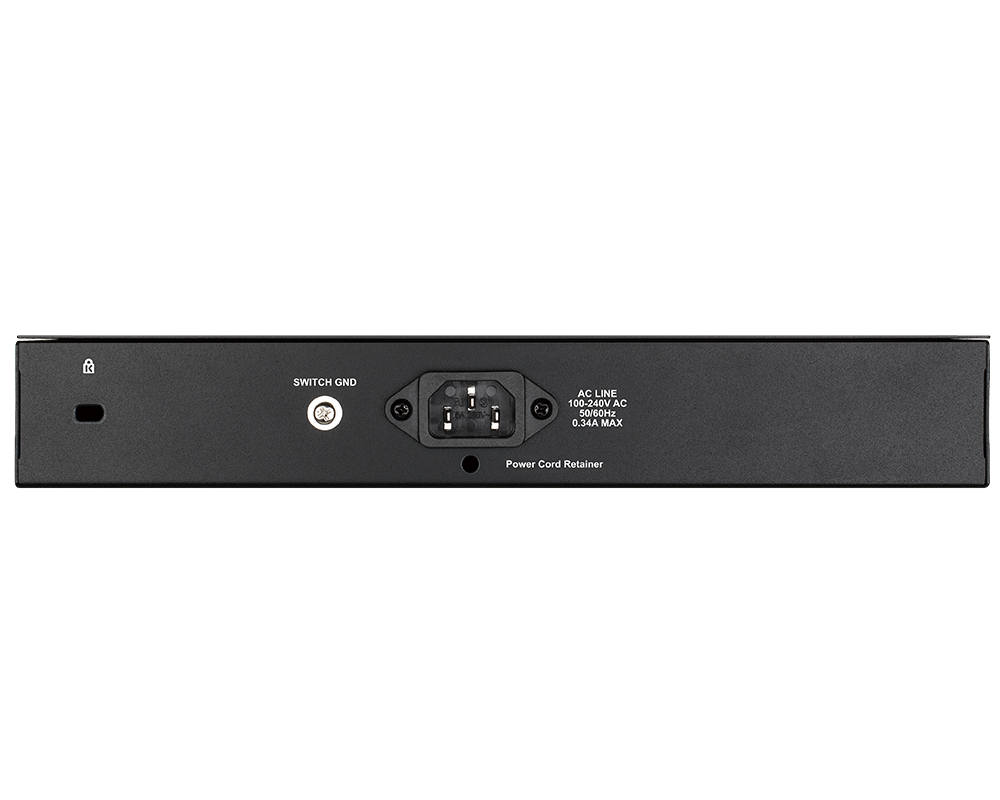

מראה מאחורה
