DGS-703

1000Base-LX Single-Mode GBIC Transceiver (up to 10 km)
Recommended

תאור

D-Link Gigabit Interface Converters (GBIC) are the transceivers that connect Gigabit switches and 10/100Mbps switches with
GBIC slots to Gigabit Ethernet networks, providing high-speed connections. The fiber-optic transceivers have standard SC connectors for connection compatibility.

Hot Swappable
All D-Link GBIC transceivers are hot-swappable. You can remove or replace the GBIC transceiver with the system powered on. This permits modules and GBICs to be added or swapped without interrupting the network.

Full Size GBIC
All D-Link GBIC transceivers have full GBIC size. These transceivers slide into a full-size GBIC slot. They provide the necessary signal amplification for data to be transmitted to the network cable from the port, and vice versa, for the port to receive data from the network cable.

Applications
Applications of the fiber transceivers include distributed multi-processing, Gigabit switch cascading, high-speed I/O file transfer, bus extension application, and channel extender/data storage.

מאפיינים כללים

Interface
• 1000Base-LX port

Transceiver Type
• GBIC

Connector
• SC

Fiber Media Support
• Single-mode

Standards
• IEEE 802.3z 1000Base-LX
• IEEE 802.3x flow control

Duplex Mode
• Full duplex

Distance Capacity
• 10 km

Wavelength
• 1310 nm

Power Budget
• 10.5 dB

Cable Type
• 9 um single-mode fiber

Supported Features
• Hot Pluggable

Physical Parameters
Power
• 3.3 V / 5 V

תקנים

הורדות

DGS-703  1000Base-LX Single-Mode GBIC Transceiver (up to 10 km)

איורים

DGS-703/С1

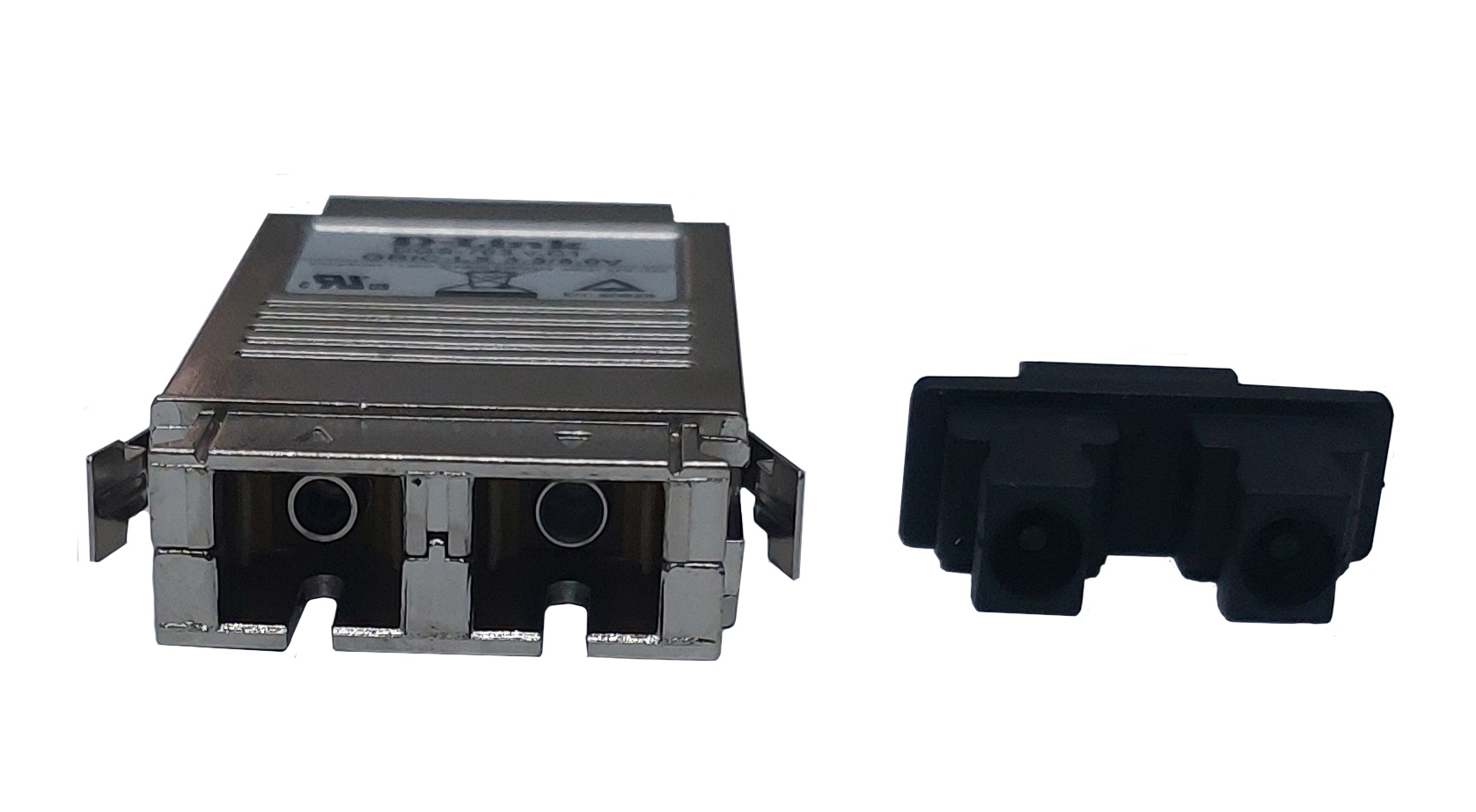

מראה מקדימה

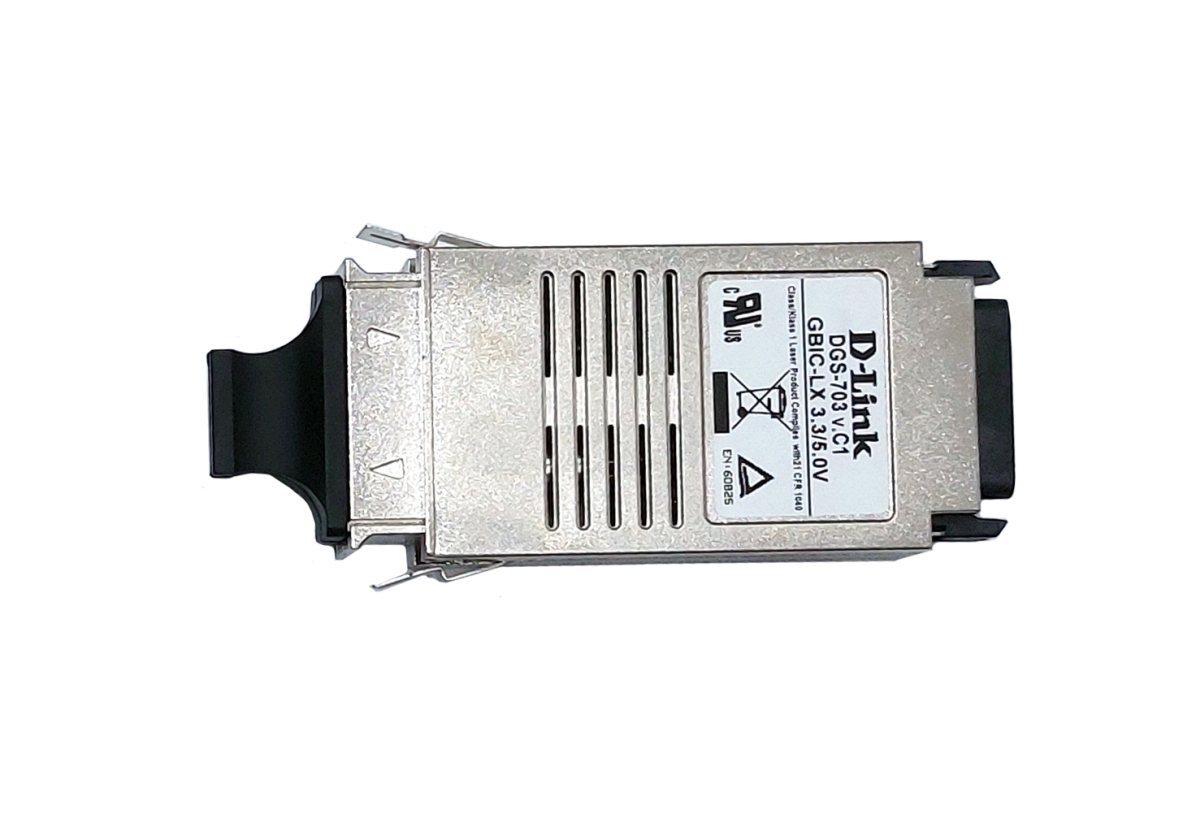

Top view

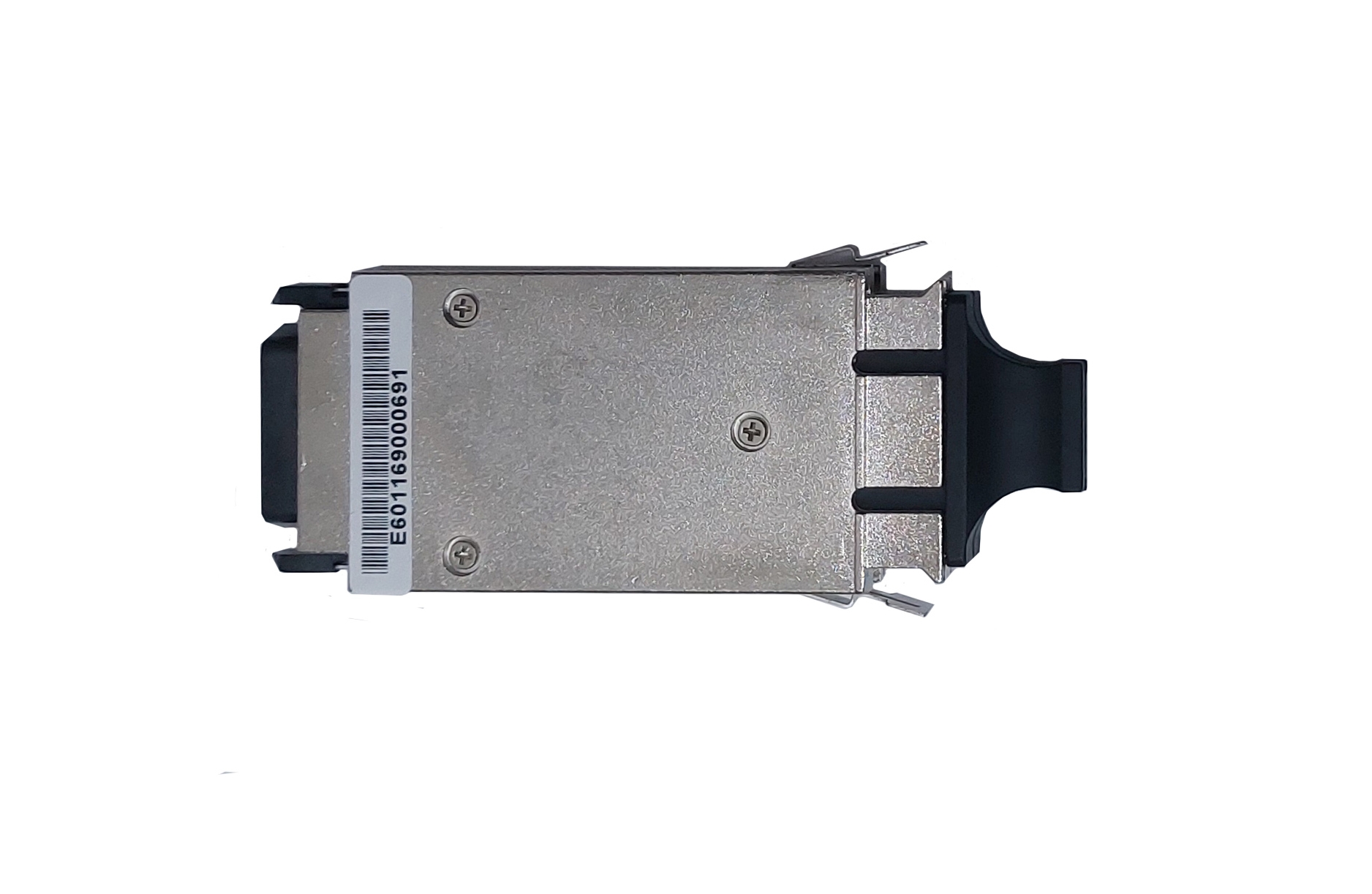

Bottom view
