מתג מנוהל 48 פורטים Layer3 במהירות 10/100 + 2 פורטים ג'יגהביט + 2 פורטים Combo SFP


For the SMB requiring a cost effective core switching solution, as well as for larger Enterprise and Metropolitan Service Provider (MSP) environments needing a managed, feature rich switch capable of uplinking to backbone switches, the D-Link xStack DES-3852 is designed to meet the needs of the most demanding departmental and enterprise connectivity applications. The xStack DES-3852 Switch is a fully managed Layer 3 switch that provides 24 10/100Mbps Fast Ethernet ports and 2 Combo SFP/1000BASE-T Gigabit Ethernet ports. In addition, 2 fixed 1000BASE-T ports in the back-panel can provide a dedicated trunk connection between devices or core switches. The xStack DES-3852 also provides virtual stacking functionality via D-Link Single IP Management (SIM) technology allowing up to 32 units to be managed via a single IP address. With support for Q-in-Q Double VLAN tagging, IPv6 awareness*, Dynamic Layer 3 Routing, IEEE 802.1s, and bandwidth control, the xStack DES-3852 incorporates advanced features suitable for the MSP as well as the SMB and Enterprise size network.

Watch episode on DES-3800 Series

Advanced L3 Routing
The xStack DES-3852 is a high performance Layer 3 switch that provides an ideal solution by offering advanced Layer 3 routing features such as RIP, OSPF, VRRP, up to 10 IP addresses per VLAN, and floating static routes. Multi-path Routing*, which is the method of establishing multiple paths between given source-destination nodes within a network, is also a feature supported on the xStack DES-3852. These added routing features provide redundancy, improve network utilization, and provide load balancing for the network.

Learn more. Download the D-Link End Point Security Strategy Whitepaper

Metro Switching
Service provider networks are moving from circuit-based access to newer packet-based access that requires highly reliable intelligent switching and demands resiliency and dependability. The xStack DES-3852 meets this demand by supporting industry standards for 802.1s (Multiple Spanning Tree), 802.3ad link aggregation for up to 32 groups, bandwidth rate limiting down to 64k, and support for an external redundant power option for added peace of mind. In addition, the xStack DES-3852 offers Double VLAN Q-in-Q tagging, which adds on an additional tag to a VLAN tag, expanding the VLAN space and allowing service providers to deploy their service quickly and securely. The xStack DES-3852 also incorporates advanced QoS support such as the ability to filter and forward traffic based on Layer 2/3/4, making it an ideal choice for VoIP, video, and audio services targeting business class customers.

Network Security
The xStack DES-3852 is equipped to handle many of today’s emerging security vulnerabilities. Up to 800 independent access control lists can be configured with the ability to filter and block traffic based on such criteria as: Port, MAC, 802.1p priority, VLAN, DSCP, IP address, Protocol type, and TCP/UDP port number and content, proving that the xStack DES-3852 provides unparalleled security in its class. In addition, the xStack DES-3852 incorporates 802.1x Port-based and MAC-based RADIUS authentication for secure network logins and SSH/SSL for increased management security. Further, the xStack DES-3852 incorporates IP-MAC-Port Binding and the D-Link Safeguard Engine to protect the CPU from broadcast, multicast, and unicast flooding.

* Available in future firmware upgrade.

מאפיינים כללים

General Standards


Managed Layer 2/3/4 Switch with (48) 10/100 Mbps Ports, (2) Combo SFP/1000BASE-T Ports, & (2) Built-in 1000BASE-T Uplinks

Packet Buffer


MAC address Table


IP Address Table


IP Routing

128 static/ 16k total

Aggregated Bandwidth


Transmission Method


VLANs Support

Up to 4K Static, 255 Dynamic 802.1p VLAN Groups

Priority Queues

8 Queues - Strict Priority or Weight Round Robin Queue Scheduling

Classification ACLs

MAC Address, IP Address, TCP/UDP Port Number & Payload, Physical Port, DSCP, 802.1p,VLAN, Protocol Type

Classification QoS

MAC Address, IP Address, TCP/UDP Port Number, Physical Port, DSCP, ToS

Multicast Support

IGMP v1/2/3, IGMP Snooping

Jumbo Frames

Up to 9KB

Number of IP Interfaces per VLAN


Multicast Duplication

Hardware Packet Replication on 8 VLANs on FE Ports and 32 VLANs on GE Ports*

Port Security

Supports 16 MAC Addresses per Port. Radius and TACACS+ Authentication, SSH v2, SSL v2, 802.1x port/MAC based

Broadcast Storm Bandwidth Control

Minimum Granularity: 128pkt/s

MAC-IP Binding

Supports 500 Entries per Device

CPU Protection

Protect CPU from Broadcast/Multicast/Unicast Flooding

CPU Monitoring

Utilization via Web/CLI/SNMP. Trap /Logging Notification when Configurable Threshold Reached IP Setting

Prevents Device from Occupying an IP Address

802.3ad Link Aggregation

Up to 32 Groups, 8 Ports per Group


Single IP Management up to 32 Units

LED Status Lights

Per Device: Power, Console (to indicate login through RS-232 port), RPS, Link/Act/Speed

Interface Options


10BASE-T, 100BASE-TX & 1000BASE-T


With Optional Standard Small Form-Factor Pluggable (SFP) Gigabit Transceivers


Redundant Power Option Via (DPS-200)

Network Management

In Band & Out of Band

Telnet, CLI/Console, RMON, Web-based HTTP, SNMPv1/v2/v3, Syslog, Port Mirroring, TFTP Client, BootP/DHCP Client, IEEE 802.3 Ethernet, 802.3u Fast Ethernet, 802.3ab Gigabit Ethernet, 802.3z Gigabit Ethernet, 802.1d Spanning Tree, 802.1w Rapid Spanning Tree, 802.1p Priority Tags, 802.1q VLANs (4K static/ 255 dynamic), 802.3ad Link Aggregation (32 Groups/8 ports), 802.3x Flow Control, 802.1x Port-based /MAC based control, 802.1s (Multiple Spanning Tree), WRED Congestion Control*, STP Loopback Detection*, GVRP, Guest VLAN*, Per Port Limit IP Multicast Address Range*, Web GUI Traffic Monitoring, Web MAC Address Browsing, SNMP Trap on MAC Notification, DHCP Relay Option 82, DHCP Auto-configuration, Trap/Alarm/Log Severity Control, Dual Image, Dual Configuration*, Port Description, Editable Login Banner, Editable System Prompt, Virtual Interface/ Loopback Interface*, CPU Interface Filtering (Software ACL), Port Mirroring ACL Mode


RFC 1157 SNMP, RFC 1112/2236 IGMPv1/2 IGMPv3*, RFC 1757/2021/2819 RMON (4 Groups), RFC 1493 Bridge MIB, RFC 1213 MIB II, RFC 793 TCP, RFC 826 ARP, RFC 854 Telnet, and DiffServ, RFC 1724 RIP v1/2, RFC 1850 OSPF , DVMRP, RFC 2934 PIM-DM, PIM-SM*, RFC 2932 Multicast Routing, RFC 2787 VRRP, RFC 2096 IP Forwarding Table, RFC 2618/2620 RADIUS Client, RFC 2863 IF MIB, RFC 2674 802.1p MIB, RFC 2668 802.3 MAU MIB, RFC 2665 ether-like MIB, SSH, SSL, TACACS+

Electrical & Emissions Summary


CE Class A, FCC Class A, VCCI Class A, C-Tick Class A

Power Supply

AC Input: 100 - 240 VAC, 50/60 Hz Internal Universal Power Supply

Power Consumption

47 Watts

Safety Agency Certifications and Environmental


CSA International, CB Report


Operating: 0° - 40° C (32° - 104° F)

Storage: -40° - 70° C (-40° - 158° F)


Operating: 10% to 85% RH, Non-Condensing

Storage: 5% to 95% RH, Non-Condensing


81.72 BTUs per Hour

Physical Specifications

Dimensions (W x D x H)

12.16 x17.36 x 1.73in (33.88 x 44.09 x 4.39cm) 1U Rack-mount Size



Warranty and Support Information


lifetime warranty

Ordering Information

Part Number




Managed Layer 2/3/4 Switch with (48) 10/100 Mbps Ports, (2) Combo SFP/1000BASE-T Ports, & (2) Built-in 1000BASE-T Uplinks


Mini-GBIC/SFP 1000BASE-LX (up to 10Km)


Mini-GBIC/SFP 1000BASE-SX (up to 550m)


Redundant Power Supply


2-Slot Redundant Power Supply Unit Chassis Support for DPS-200

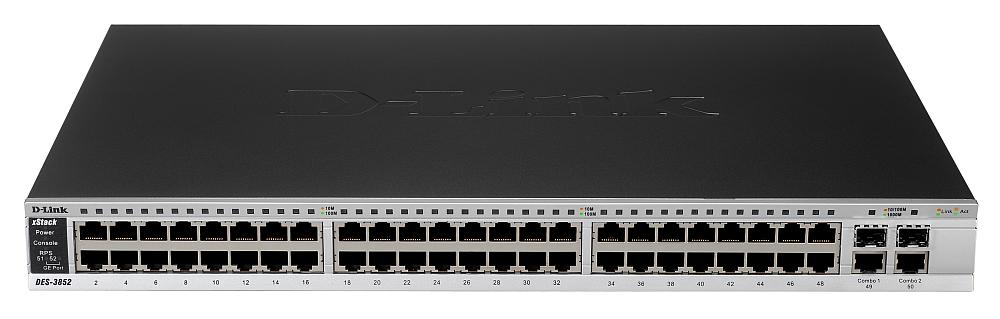

מראה מקדימה

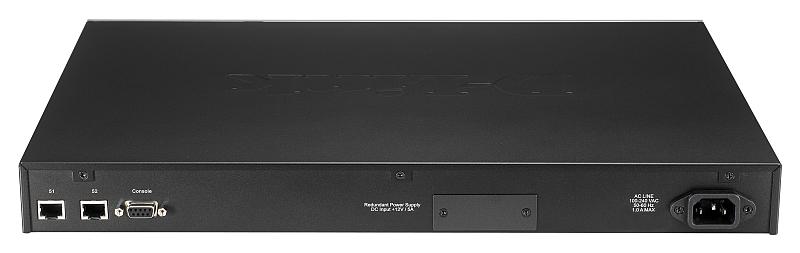

מראה מאחורה
