Gigabit PoE Splitter DP-301 GS with support for IEEE 802.3at / af provides access to Gigabit Ethernet networks and power supply up to 30 watts for one Ethernet-cable devices without support PoE, such as IP-cameras, IP-phones and wireless access points . Thus, the network device can be powered by PoE, which allows to use it virtually anywhere in the building without the need for placing the device near a power outlet.
Support for more devices
DPE-301GS provides remote access to a greater number of devices with high power consumption. DPE-301GS produces 5 VDC / 2.5 A 9 V DC / 2 A or 12 VDC / 2 A, it can be used in video surveillance systems, security equipment, as well as network devices, operating standard 802.11ac.
DPE-301GS can be used to connect wireless access points and IP-based cameras in any, even remote, places far from the outlets. It made possible the installation of network devices where they will be most effective. Now you can forget about the problems associated with limited access to power, bulky extension cable, the inconvenience and the cost of installation of new electrical wiring.
Installing the splitter DPE-301GS is easy and does not require additional tools and software. The compact size of the device makes it easy to start working. You only need to connect a DPE-301GS or to the switch PoE / PoE +, or to a PoE-injector with a 30-watt (eg, DPE-301GI), connect the splitter to the device without the support PoE, using a standard Ethernet-cable, and then connect the device and splitter cable included in the set of DC-type female-to-female.
• LAN OUT

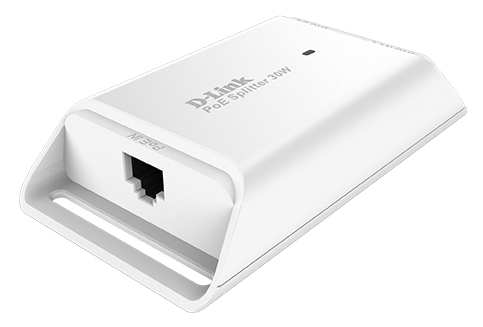

• PoE IN
• Supports half / full duplex
• Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
• Power (per device)

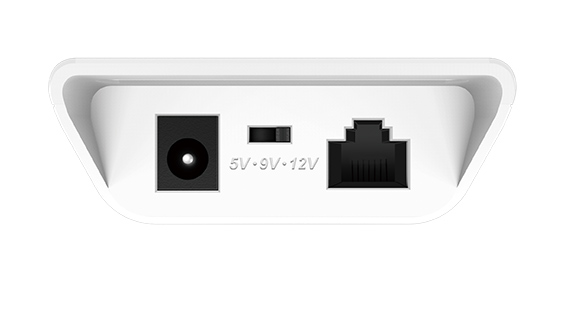

• Power connector DC OUT
