DCS-7110מיועד לפרויקטים

מצלמת מעקב חיצונית עם אפשרות צילום לילי

תאור

D-Link DCS-7110 is an all-in-one, outdoor network camera equipped with industry-leading high definition (HD) megapixel resolution and H.264 compression. The DCS-7110 connects to a network to provide high-quality live video over the Internet. This camera is capable of capturing video in both dark and light environments thanks to its built-in IR LEDs and IR-cut removable (ICR) filter. The ICR filter can be manually applied via the web, or set to automatically adjust based on lightning conditions. This feature allows the camera to capture crisp color images during the daytime and detailed grayscale images at night or in or low-light conditions.

Multiple Video Streams
The DCS-7110 supports simultaneous streaming of H.264, MPEG-4, and MJPEG video to provide both high-quality and bandwidth-efficient compression formats. H.264 produces a small file size, making it useful for extended recording with high detail or for use in low-bandwidth networks. MJPEG delivers excellent file integrity, ideal for situations which require extensive image detail. Additionally, the DCS-7110 supports multicast H.264 streaming, allowing users to view the camera feed by subscribing to a multicast IP address on the network.

Flexible Connectivity

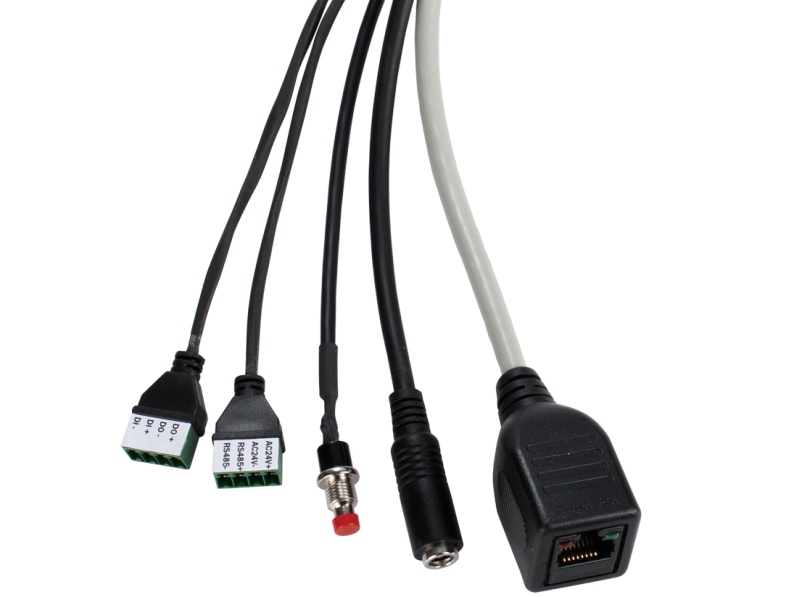

The DCS-7110 includes input and output ports for connectivity to external devices such as IR sensors, switches, and alarm relays. It also comes with an RS-485 interface, providing connectivity to an optional pan/tilt scanner. The DCS-7110 also incorporates Power over Ethernet (PoE), allowing it to be easily installed in a variety of locations without the need for supplemental power cabling.

Weather-proof and Tamper-proof
Designed to be mounted outdoors, the DCS-7110 includes an IP66 certified enclosure which protects against the elements. Anti-tamper features make this camera suitable for tamper-prone locations such as transportation hubs, schools, or correctional facilities. The electronic tamper detection system can sense whenever the camera has been redirected, de-focused, blocked, or spray-painted, and respond promptly with a visible or audible alarm.

Advanced Web User Interface
The DCS-7110 features D-Link’s latest-generation graphical user interface. This freshly-designed web interface features a clean, compact, and professional home screen which dramatically increases usability. Menu navigation is simplified thanks to a tree view which logically groups functions, helping users to quickly find what they need. Likewise, intuitive graphic icons reduce the amount text and clutter within the browser window. New users will appreciate the convenient contextual help which offers an easy way to find assistance with camera management tasks.

D-ViewCam for Management
The included D-Link D-ViewCam™ is sophisticated software which allows users to manage up to 32 network cameras, set e-mail alert notifications, create recording schedules, and use motion detection to record directly to a hard drive. D-ViewCam™ also allows users to upload a floor plan to create a realistic layout of the premises where cameras are located, further simplifying the management process.

3GPP Mobile Surveillance
Support for 3GPP Mobile Surveillance allows users to view a live video feed from a 3GPP compatible Internet-ready mobile device. This extends monitoring capability, allowing users to check the camera’s video feed while on the go without a computer.

מאפיינים כללים

Hardware Profile
1/4” Megapixel progressive CMOS sensor
15 meter IR illumination distance
Built-in Infrared-Cut Removable (ICR) Filter module
4 mm fixed lens , F1.5 with 65.4 degree horizontal viewing angle
256 Mbytes SDRAM
128 Mbytes of flash memory

Image Features
Configurable image size, quality, frame rate, and bit rate
Time stamp and text overlays
3 configurable motion detection windows
Min Illumination: 0.26 Lux (day mode), 0 Lux (night mode) with IR LED
5 configurable privacy masks
Flip & mirror
Configurable white balance, shutter speed, brightness, saturation, contrast, sharpness

Video Compression
H.264/MPEG4/MJPEG format compression simultaneously
JPEG for still image
H.264/MPEG-4 multicast streaming

Video Resolution
1280x800 @ 30 fps
1280x720 @ 30 fps
640x480 @ 30 fps
320x240 @ 30 fps
176x144 @ 30 fps

Network Protocols
IPv4, IPv6, TCP/IP, UDP, ICMP, DHCP Client, NTP Client (D-Link), DNS Client, DDNS Client (D-Link), SMTP Client, FTP Client, HTTP / HTTPS, Samba Client, PPPoE, UPnP Port Forwarding, RTP / RTSP/ RTCP, IP filtering, 3GPP, LLTD, CoS/QoS, SNMP, IGMP, 802.1x, ONVIF Compliant

Security
Administrator and user group protection
Password authentication
HTTP and RTSP digest encryption
HTTPS streaming

Event Management
Motion detection
Event notification and upload snapshots/video clips via HTTP,
SMTP or FTP
Supports multiple HTTP, SMTP and FTP servers
Multiple event notification
Multiple recording methods for easy backup
Remote client access control

Surveillance Software Function
Remote management/control of up to 32 cameras
Viewing of up to 32 cameras on one screen
Supports all management functions provided in web interface
Scheduled motion triggered, or manual recording options

Supported PDA, Mobile Phones, and Software
Handsets with 3GPP player, Packet Video Player 3.0, QuickTime 6.5, Real Player 10.5, Windows 2000, XP



תקנים

הורדות

איורים

DCS-7110/A1
מראה מקדימה

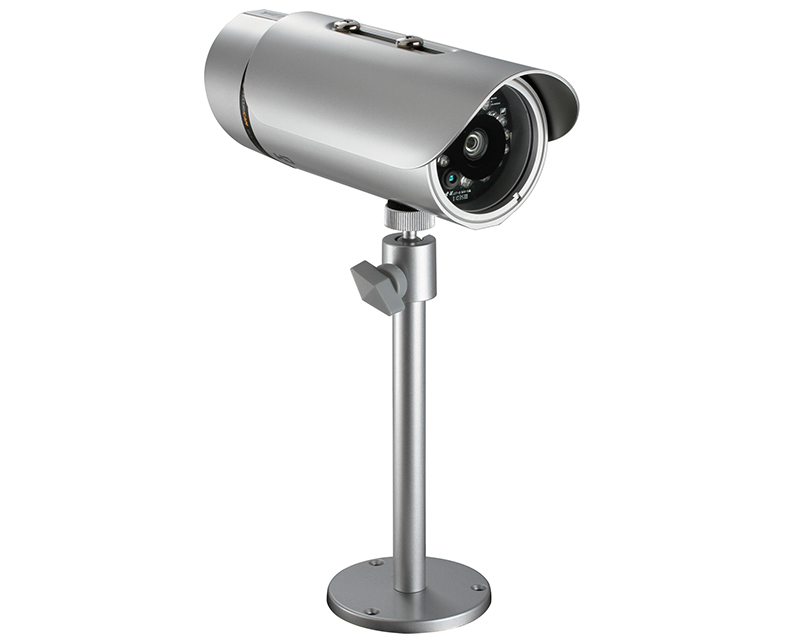

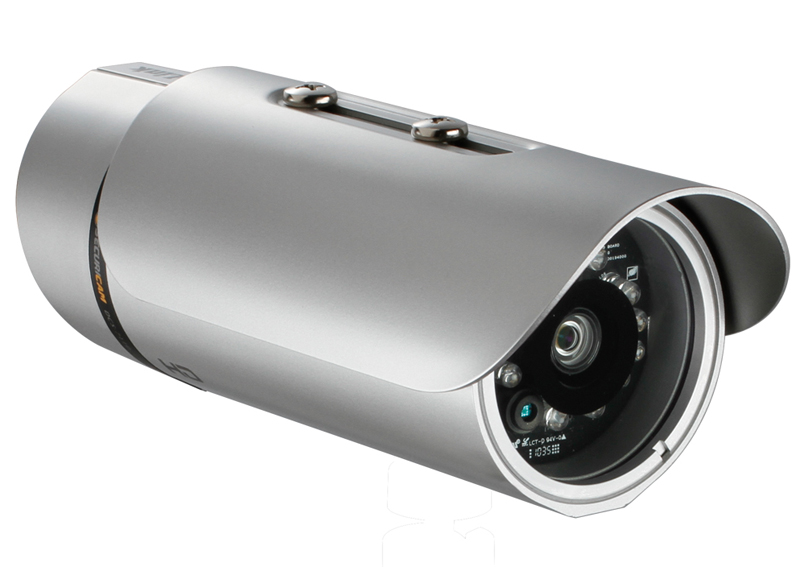

מראה מימין

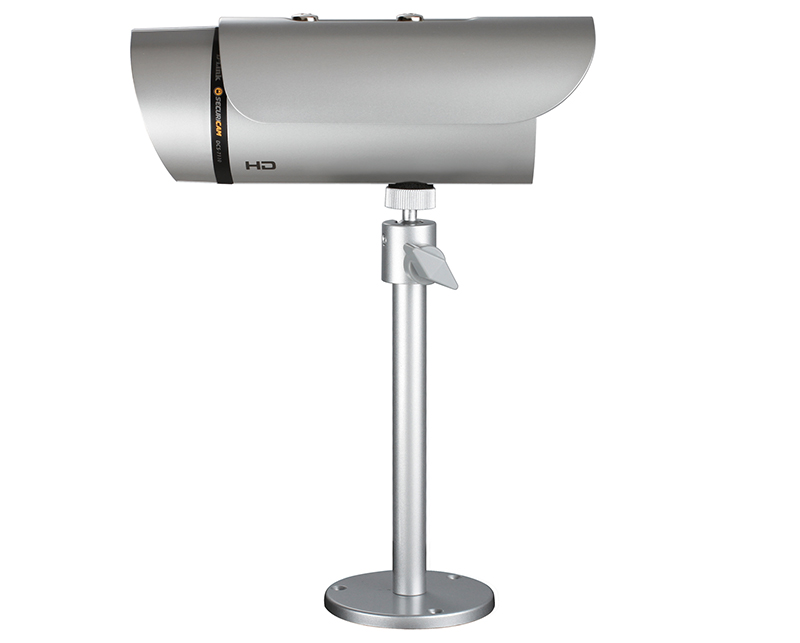

מראה משמאל

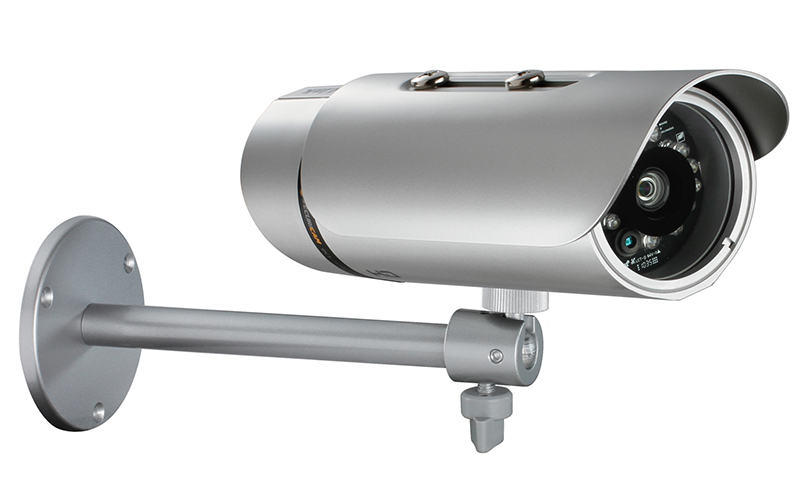

מראה מימין
מראה מקדימה
DCS-7110/Bx

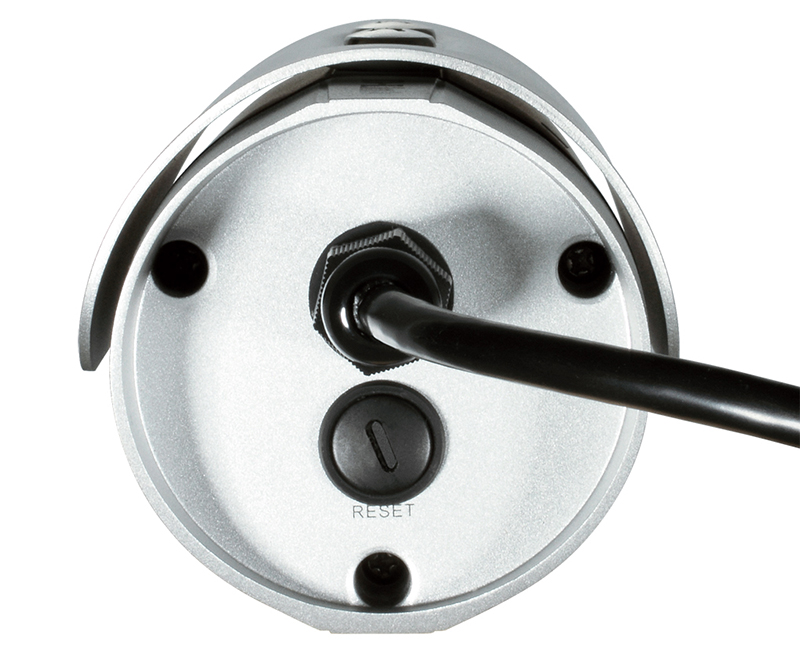

מראה מאחורה

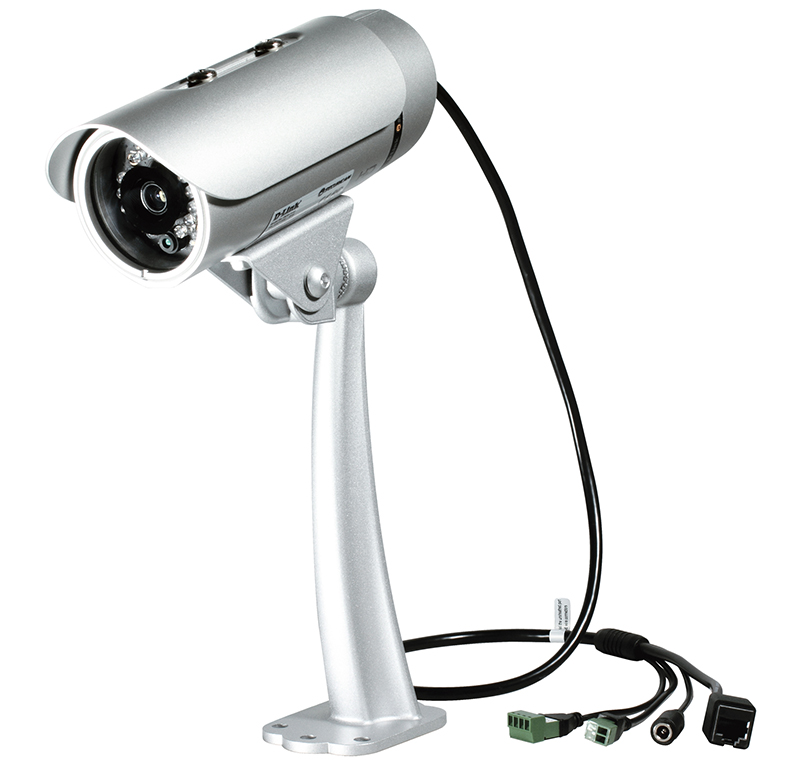

מראה מימין

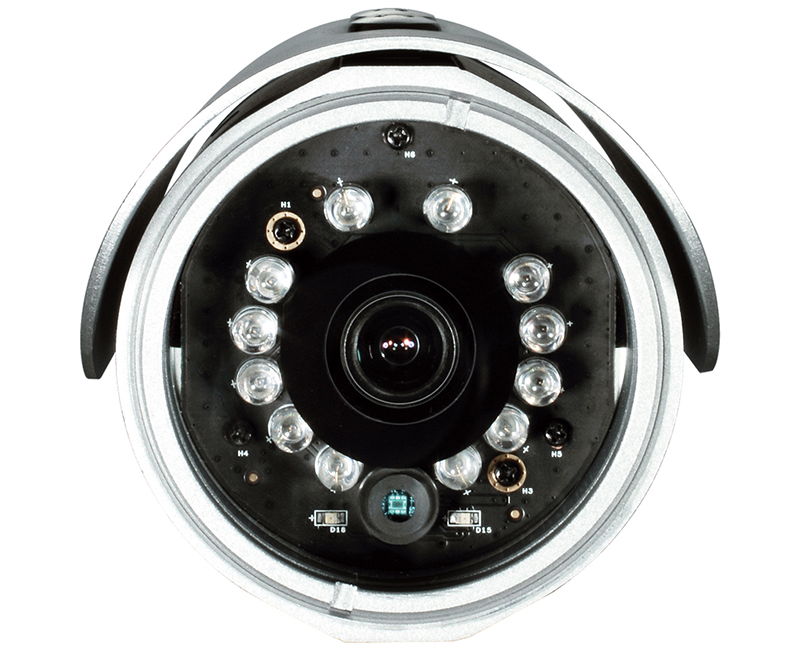

מראה מקדימה
DCS-7110/A3
מראה מקדימה

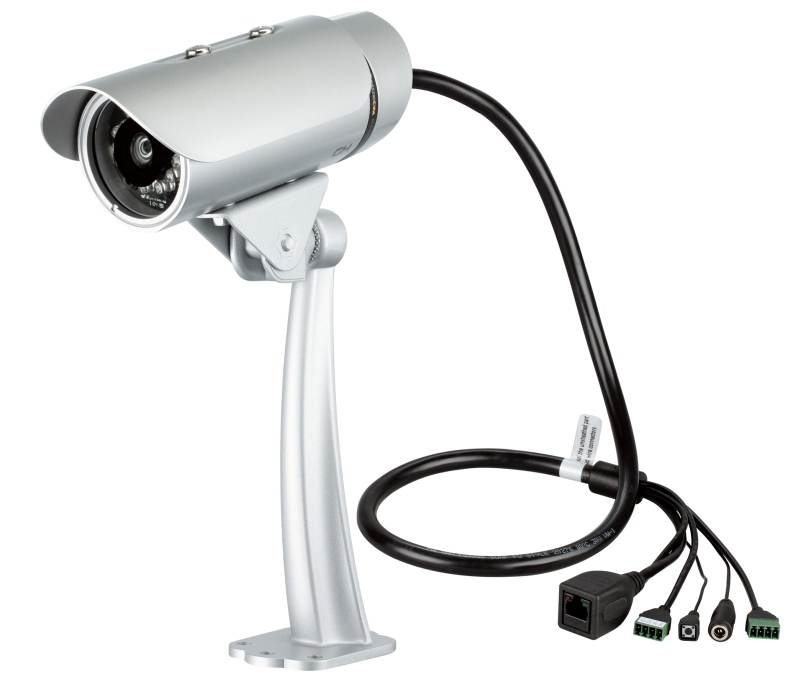

מראה משמאל

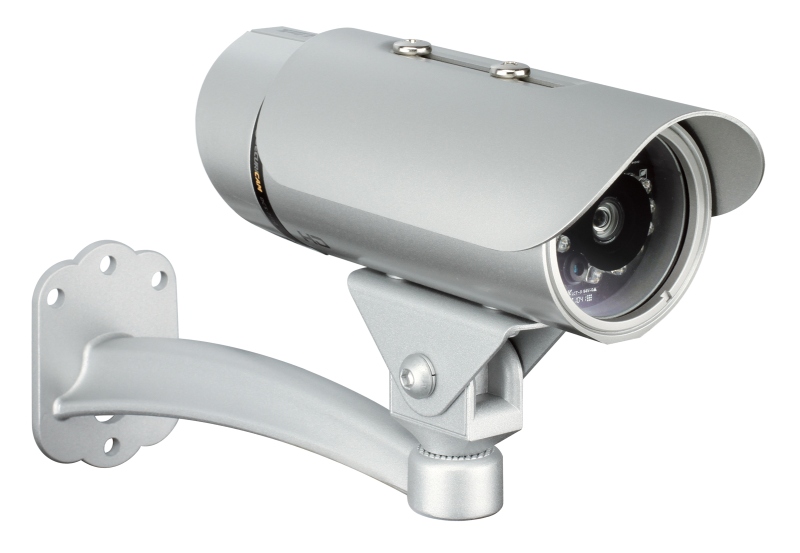

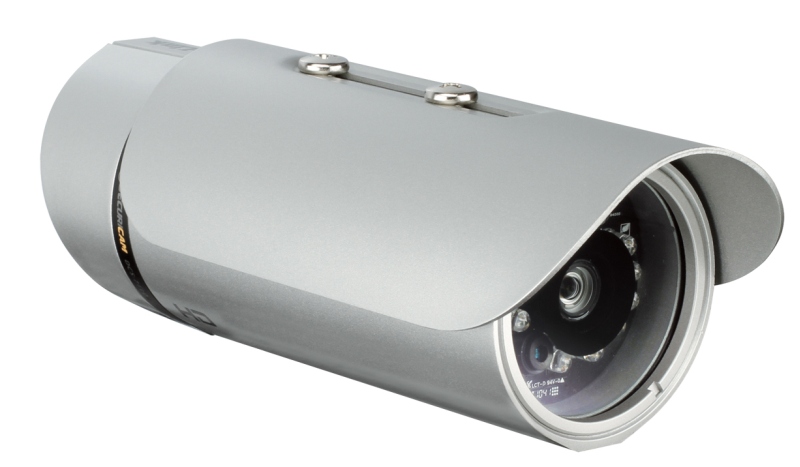

מראה מימין
