מצלמת מעקב חיצונית עם אפשרות צילום לילי באיכות Full HD עם חיישן WDR

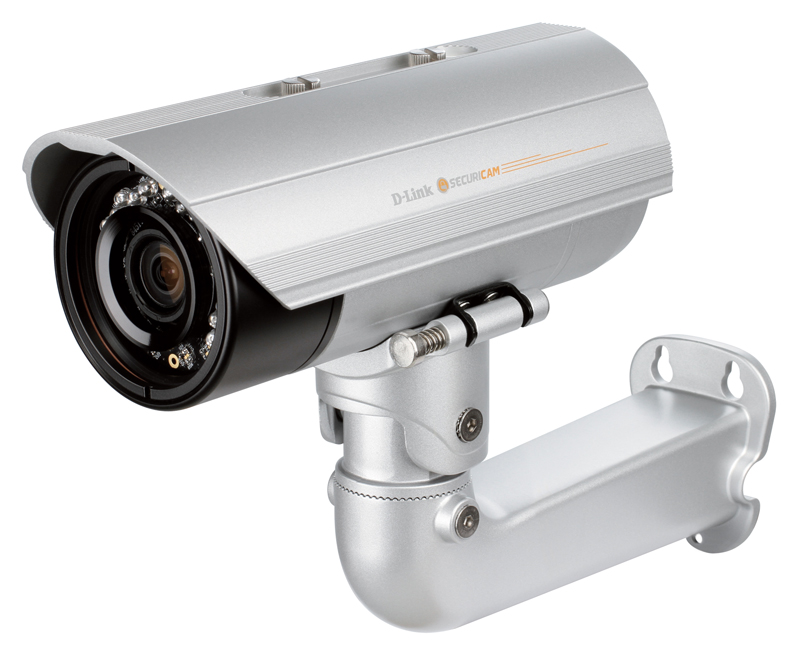

Full HD camcorder external D-Link DCS-7513 is an ideal solution for creating a system of professional high-definition video, and security of small, medium and large enterprises. Highly sensitive two-megapixel CMOS-sensor with progressive scan technology provides superior image quality in various lighting conditions. Rugged dustproof and waterproof design allows you to set the camera in different locations, without the need for additional accessories.
High-quality video
Video Camera DCS-7513 is equipped with a P-Iris, providing automatic aperture control with high precision. The built-in lens motor step optimizes aperture value in all lighting conditions, thus ensuring high quality, sharpness and depth of field images. The remote focus eliminates the need to manually focus and allows you to configure the camera from any computer. To maximize bandwidth efficiency and improve image quality Camera DCS-7513 provides video compression in real-time formats: H.264, MPEG-4 and MJPEG and supports three separate profiles for simultaneous streaming and recording video. Support for these features enhances security, including video surveillance in public places in order to detect incidents and coordinate appropriate responses, control of restricted areas, prevention of criminal activities or monitoring property. In addition, the bandwidth requirements can be adjusted in real-time and recorded video files can be stored on a network storage device (NAS), or SD-card.
Continuous monitoring
Video Camera DCS-7513 with WDR sensor provides improved image quality but with uneven lighting, thus allowing to identify the subject lit from behind, or shooting in very bright light. Built-in infrared LEDs (up to 30 meters) automatically according to the lighting conditions and allows the camera to conduct video surveillance in complete darkness. Thanks to a data set of functions Camera DCS-7513 is ideal for day and night surveillance.
Reliable management software
With the camera DCS-7513 includes D-ViewCam - complete set of software for video, allowing you to view, manage and record up to 32 cameras on a single computer. In addition, the available video recording and email alerts when motion is detected or when the signal to the digital input.
Support for Power over Ethernet 802.3af device simplifies installation by transmitting the power and connectivity, one Ethernet-cable, eliminating the need for additional power cables. In addition, the digital input and output allow you to connect external devices such as IR sensors, switches and signal relay.

מאפיינים כללים

• 1/2 inch, 8-megapixel CMOS-sensor with progressive scan technology
• Infrared light: lighting range - up to 30 m
• Minimum illumination: 0 lux with IR lighting
• Built-in ICR-filter
• 10x digital zoom
• Focal length: 3.9 mm
• Aperture: F1.2
• Viewing angle (16:9):
  121,2 ° - 38,1 ° (horizontal)
  62,1 ° - 21,3 ° (vertical)
  148,4 ° - 43,8 ° (diagonal)
Camera Body
• Weatherproof housing (standard IP-66)
• Bracket for cable
Functional video
• Adjustable image size and quality, frame rate and data
• Timestamps and paste text
• Customizable windows for motion detection
• Private mask
• Set the shutter speed, brightness, color saturation, contrast, sharpness, zoom, focus and iris
Video Compression
• Simultaneous compression formats H.264/MPEG-4/MJPEG
• Multicast streaming video formats H.264/MPEG-4
• JPEG for still images
Video Resolution
• 16:9 - 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270, 320 x 176, 176 x 144 up to 30 frames / s
• 4:3 - 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 640 x 480, 320 x 240, 176 x 144 up to 30 frames / s
Audio support
• G.726
• G.711
Interfaces to external devices
• Port 10/100 BASE-TX Fast Ethernet with PoE
• 1 DI / 1 DO
• Output 12 VDC, 100 mA
• Card slot for SD / SDHC
• Audio-vhod/vyhod
• The connector DI / DO
Network Protocols
• IPv6
• IPv4
• TCP / IP
• DHCP-Client
• NTP-Client (D-Link)
• DNS-client
• DDNS-client (D-Link)
• SMTP-client
• FTP-client
• Samba-client
• UPnP port forwarding
• Filtering of IP-addresses
• QoS
• CoS
• Multicast
• Security Administrator and user group
• Password authentication
• Encryption HTTP and RTSP
System requirements for Web-based
Web-browser: Internet Explorer, Firefox, Chrome or Safari
Event management
• Motion detection
• Event notification and download stop-kadrov/videoklipov by e-mail or FTP
• Support for multiple FTP and SMTP servers
• Multiple event notifications
• Several ways to backup
Remote management
• Creating and maintaining stop-kadrov/videoklipov to a local hard drive or NAS via Web-browser
• Setting up a Web-browser
Operating system
• Windows 7/Vista/XP/2000
System Requirements D-ViewCam ™
• Operating System: Microsoft Windows 7/Vista/XP
• Web-browser: Internet Explorer 7 or above
• Protocol: Standard TCP / IP
Software features D-ViewCam ™
• Remote control
• Monitoring / control up to 32 cameras
• View images from 32 cameras on one screen
• Supports management of Web-based
• Recording Option detected image or manually
