ANT24-0801

Outdoor Directional Antenna, 8 dBi

תאור


The ANT24-0801 outdoor directional antenna with 8 dBi gain operates in 2.3 - 2.5 GHz frequency band and has N Plug connector.

The ANT24-0801 antenna connects to a wireless device equipped with detachable external antennas, for example access point or router. Standard detachable antennas usually have lesser gain than the ANT24-0801, therefore using the 8 dBi ANT24-0801 antenna allows you to extend the 2.4 GHz wireless network coverage and improve the quality of signal reception/transmission.

This antenna is suitable
both for outdoor and indoor use. Wide range of operating temperatures (-40 to 80 В°C) allows you to use the antenna in harsh environmental conditions. N type connector provides compatibility with the most of outdoor access points, while the optional N Jack & RP-SMA Plug cable allows you to connect the ANT24-0801 to indoor wireless devices.


מאפיינים כללים


Connector
• N Plug

Frequency band
• 2.3 GHz - 2.5 GHz

Gain
• 8 dBi

VSWR
• 2.0 : 1 Max.

Polarization
• Linear, vertical

HPBW / horizontal
• 70В° В± 5В°

HPBW / vertical
• 65В° В± 5В°

Impedance
• 50 Ohms

Power handling
• 50 W

Lightning protection
• DC Ground

Physical Parameters
Dimensions
• 140 x 120 x 25 mm

Weight
• 0.45 kg

Environmental Conditions
Survival wind speed
• 180 km/hr

Operating temperature
• -40 to 80 В°C

Operating humidity
• 100% @ 25 В°C


תקנים

הורדות

ANT24-0801  Outdoor Directional Antenna, 8 dBi

איורים

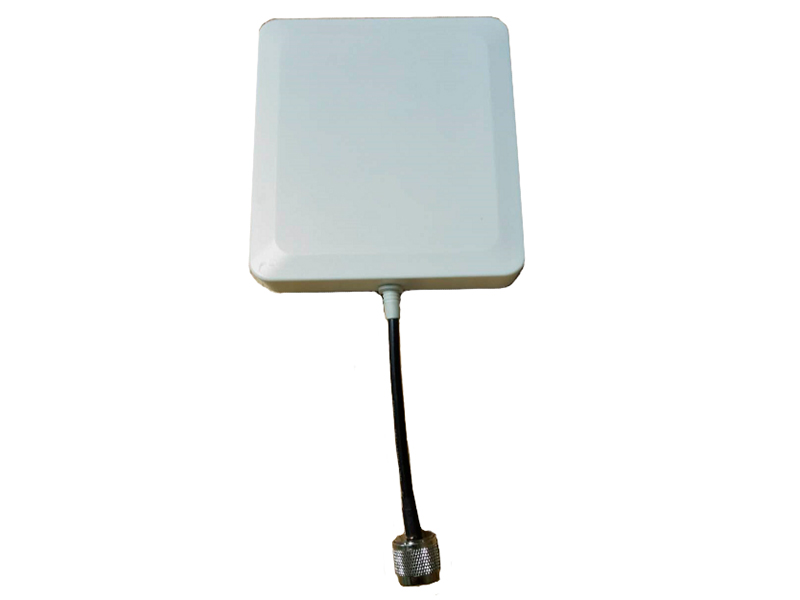

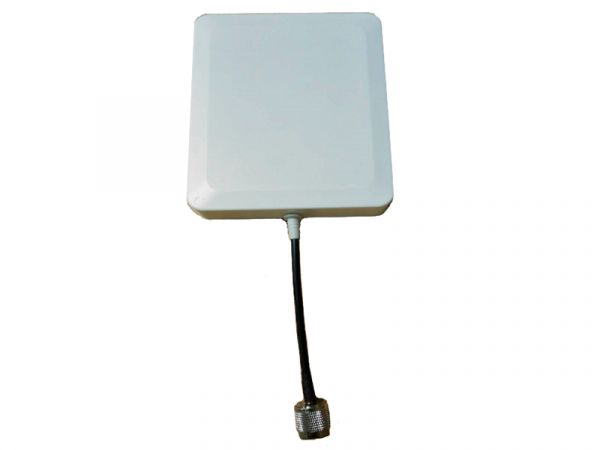

ANT24-0801/B
