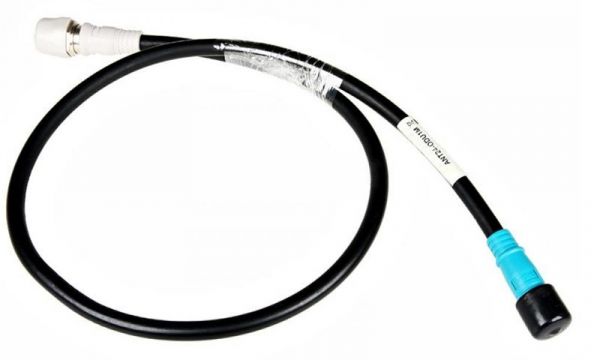

ANT24-ODU1M

כבל לאנטנה באורך 1 מטר עם מחבר RP-N ו N-type

תאור

Antenna cables sets D-Link include an extension cable which can be used to increase the distance between the antenna and the wireless device network 30 cm to several meters. It can be used with antennas operating as a frequency band of 2.4 GHz , and the 5 GHz band .

Replacing the standard antenna antenna high gain c
Wireless devices such as access points and wireless routers are equipped with external antennas to transmit and receive signals. These antennas have a certain gain, providing a working area defined by their manufacturer . Many manufacturers equip their wireless devices with removable external antennas , allowing you to replace them with more powerful antennas that if you want to increase the range of your wireless network.

To replace the antenna wireless device more powerful antenna , you can (1 ) replace the old new antenna by screwing it directly to the device or (2) place the new antenna with an extension cable is at a great distance from the wireless device in an open space to improve signal transmission and reception .

Outdoor installation
Sets antenna cables D-Link include extension cables are required to install the antenna away from your wireless devices . To meet the different needs involved in installing cables are available in various lengths . Aerial cables are made of solid materials , providing protection from the load during operation and harsh environments , including heat, rain and intense sun exposure .

Indoor Installation
For indoor installation , in which the wireless devices should be located near the rest of the equipment in a wiring closet or computer room , the antenna cables D-Link can also be used to place the antenna in the open space of a few meters away from the wireless device to improve signal transmission and reception .

מאפיינים כללים

Operating frequency range
• 2.4 to 2.5 GHz

Nominal impedance
• 50 ohms

Insertion loss at frequencies from 2.4 to 2.5 GHz
• From 0.5 to 0.6 dB

Insertion loss at frequencies from 5.15 to 5.75 GHz
• 1 to 1.15 dB

Voltage standing wave ratio (VSWR)
• 1.3:1 in the frequency range from 2.4 to 2.5 GHz

תקנים

הורדות

איורים

ANT24-ODU1M/Ax

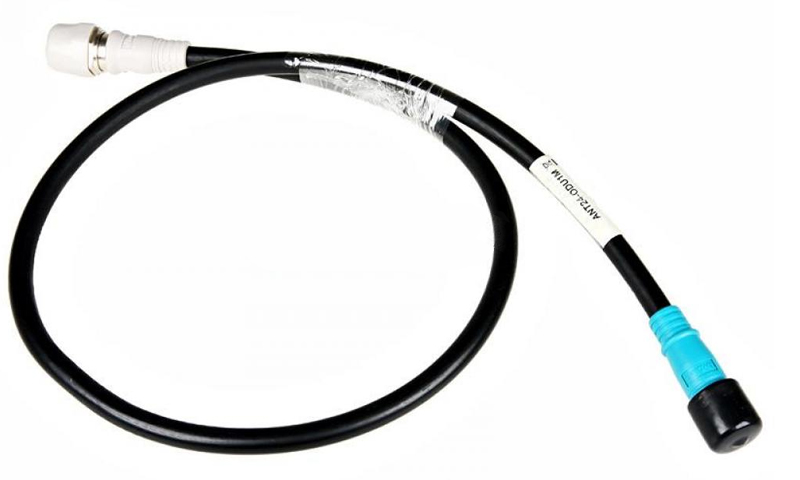

מראה מקדימה
