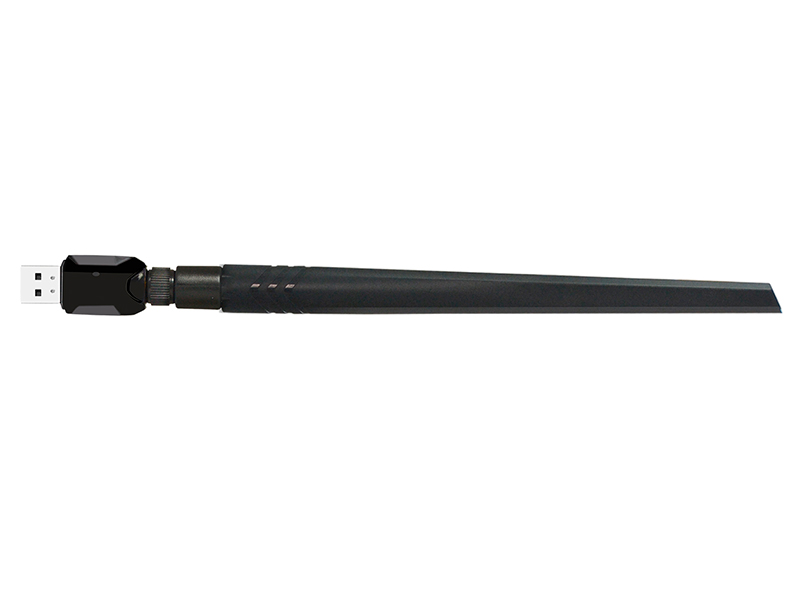

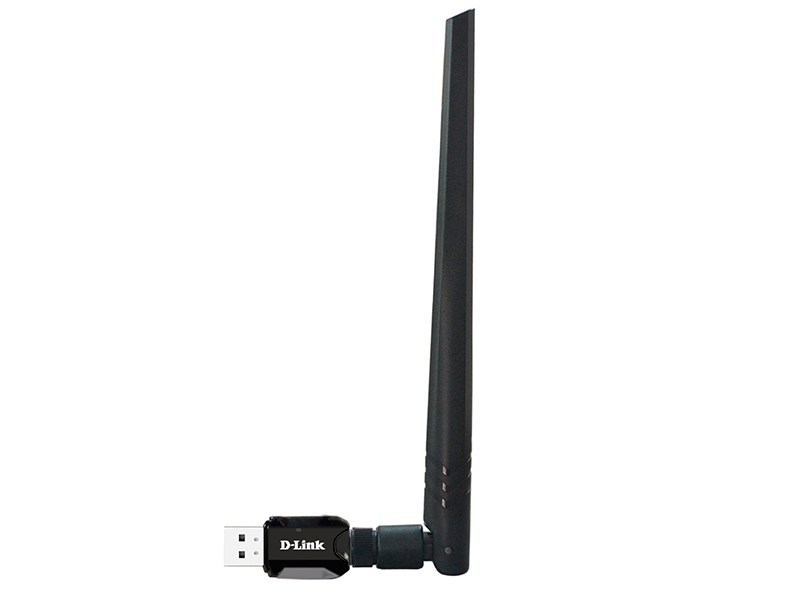

DWA-137
Wireless N300 USB Adapter with External Detachable Antenna
תאור
The DWA-137 Wireless N300 USB Adapter connects your computer to a high-speed wireless network and provides a fast wireless connection with superior reception. Once connected, you can access your network’s high-speed Internet connection and begin browsing the web, streaming videos and music, playing online games, and sharing content with your friends.
High Performance
The DWA-137 provides fast wireless performance for your PC. You can easily add the Wireless N300 USB Adapter to a PC to access a high-speed Internet connection while sharing photos, files, music, video, printers, and storage. Enhance your Internet experience with a faster wireless connection and enjoy smooth digital phone calls, gaming, downloading, and video streaming.
Extended Wireless Range
The DWA-137 is designed to provide wireless connectivity in hard-to-reach places. Its high-gain antenna provides a boosted signal reception so that you can enjoy wireless coverage over a wider distance than with a regular wireless adapter. The antenna is also rotatable so you can eliminate dead spots by fine-tuning the positioning to get the best available wireless connectivity. Maximize your wireless performance by connecting this adapter to a Wireless N router and stay connected from virtually anywhere in your home. The DWA-137 is also backward compatible with 802.11g technology, so you can use it with older equipment too1.
Robust Security Options
The DWA-137 supports WPA2 encryption that provides a protected wireless network connection and protects transmitted data. Wi-Fi Protected Setup (WPS) support greatly facilitates the connection process, allowing you to set up a connection easily with the touch of a button in the connection utility.
1Maximum wireless signal rate derived from IEEE standard 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
מאפיינים כללים
Hardware
|
|
Interfaces
|
• USB 2.0
|
LEDs
|
• Status LED
|
Antenna
|
• Detachable omni-directional 5 dBi antenna
• Integrated 2 dBi antenna
|
Requirements
|
|
Operating System
|
• Windows 7/8/10, Linux, Mac OS
|
Interface
|
• USB port1
|
Wireless Connectivity
|
|
Standards
|
• IEEE 802.11b/g/n
|
Frequency Range
|
• 802.11b/g/n: 2.4 GHz to 2.4835 GHz
|
Wireless Security
|
• Wi-Fi Protected Setup
• 64/128-bit WEP
• WPA/WPA2
• WPA-PSK/WPA2-PSK (TKIP/AES)
|
Wireless Speed2
|
• IEEE 802.11b: 1, 2, 5.5 and 11 Mbps
• IEEE 802.11g: 6, 9, 12, 18, 24, 36, 48 and 54 Mbps
• IEEE 802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
|
Physical Parameters
|
|
Dimensions (L x W x H)
|
• 45 x 19 x 12 mm
|
Environmental Conditions
|
|
Temperature
|
• Operating: 0 to 40 °C
• Storage: -20 to 60 °C
|
Humidity
|
• Operating: 10% to 90% non-condensing
• Storage: 5% to 95% non-condensing
|
1Using a USB 1.1 port will affect device performance. USB 2.0 port is recommended.
2Maximum wireless signal rate derived from IEEE standard 802.11n specifications. Actual data throughput will vary. Network conditions and environmental factors, including volume of network traffic, building materials and construction, and network overhead, lower actual data throughput rate. Environmental factors will adversely affect wireless signal range.
תקנים
הורדות
DWA-137/C Wireless N300 USB Adapter with External Detachable Antenna
