DXE-810Tמיועד לפרויקטים

Single Port 10GBase-T PCI Express Adapter

תאור

The high performance DXE-810T PCI Express 10 Gigabit Ethernet Network Adapter offers increased bandwidth and connection reliability than standard PCI network cards. This adapter supports data rates of up to 10 Gbps, eliminating the bottleneck that exists in 32-bit and 64-bit PCI bus architectures.

Advanced Features
With support of such advanced features as 802.3x Flow Control and Jumbo frame, the DXE-810T can easily interoperate with your current networking equipment. The DXE-810T also supports 802.1Q VLAN and 802.1p Priority Queuing.

מאפיינים כללים

Interface
• One 10GBase-T port

Installation Slot
• PCI Express x4/x8/x16

LEDs
• Link/Activity
• Speed

Standards and Functions
• IEEE 802.3u 100Base-TX
• IEEE 802.3ab 1000Base-T
• IEEE 802.3an 10GBase-T
• IEEE 802.3az Energy Efficient Ethernet
• 802.3x Flow Control
• PCI Express 3.0 (8 GT/s) compliant
• 802.1p Priority Queuing
• IEEE 802.1Q VLAN
• 9 KB Jumbo Frame

OS Support
• Microsoft Windows 7, 8.x, 10
• Microsoft Windows Server 2008 R2, 2012, 2016
• Linux 2.6.x (to 4.x)

Dimensions (L x W)
• 136 x 120 mm

Bar Height
• 22 mm

Weight
• 72 g

Maximum Power Consumption
• 5.3 W

Temperature
• Operating: 5 to 50 °C
• Storage: -25 to 70 °C

Humidity
• 20% to 80% (non-condensing)

תקנים

הורדות

DXE-810T  Single Port 10GBase-T PCI Express Adapter

איורים

DXE-810T/B1

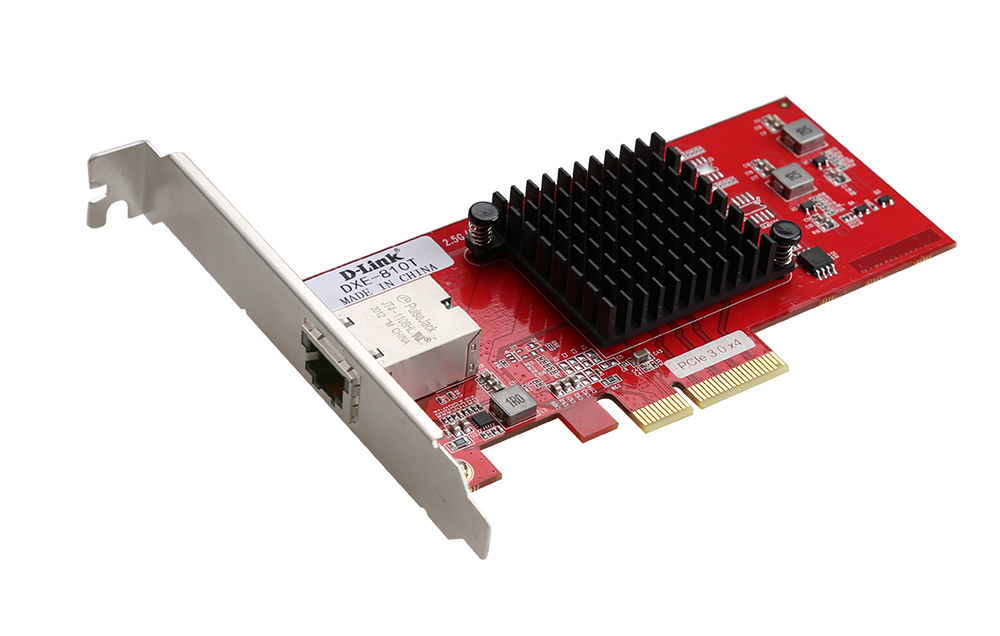

מראה מימין

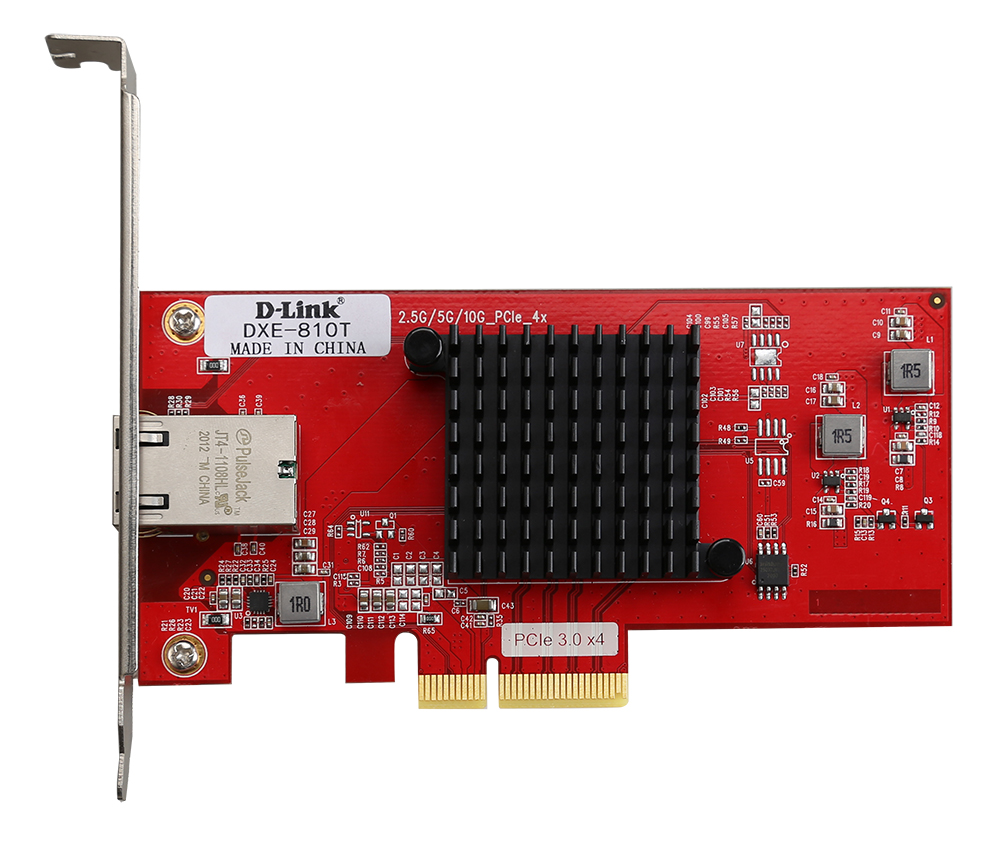

Top view

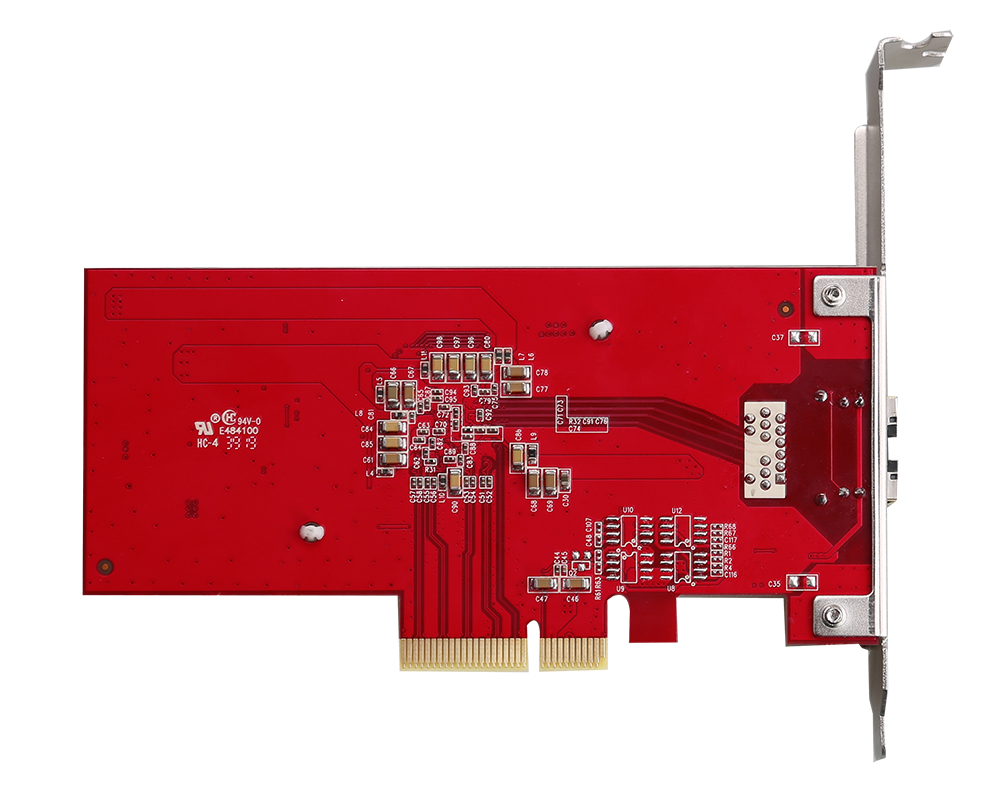

Bottom view

דף מידע
